Radiator Air Baffle Assemblies and Deflectors

Radiator Air Baffle Assemblies and Deflectors

2GRemoval Procedure

1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.

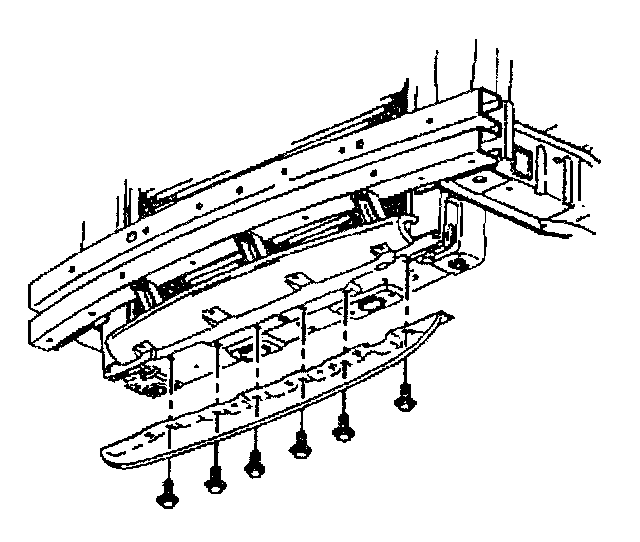

2. Remove the radiator lower air deflector mounting bolts.
3. Remove the radiator lower air deflector.

Installation Procedure

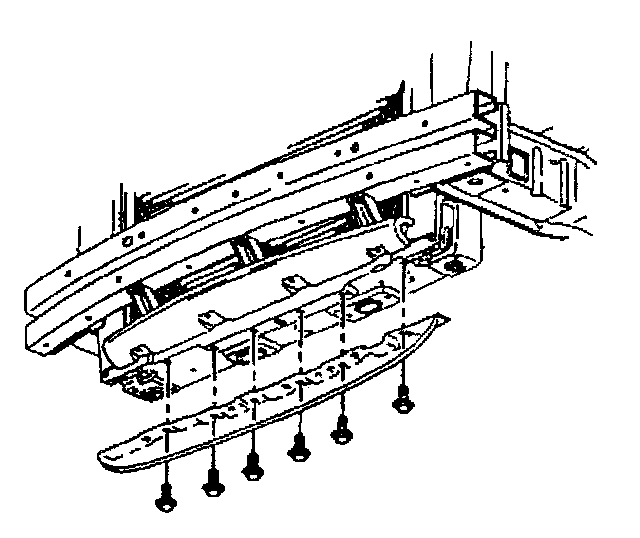

1. Install the radiator lower air deflector.

Notice: Refer to Fastener Notice in Service Precautions.





2. Install the radiator lower air deflector mounting bolts.
^ Tighten the bolts to 20 Nm (15 ft. lbs.).
3. Lower the vehicle. Refer to Vehicle Lifting.
