Oil Pump Assemble

- Tools Required
- J21882 Oil Suction Pipe Installer





1. Lubricate all the internal oil pump parts using engine oil during assembly.

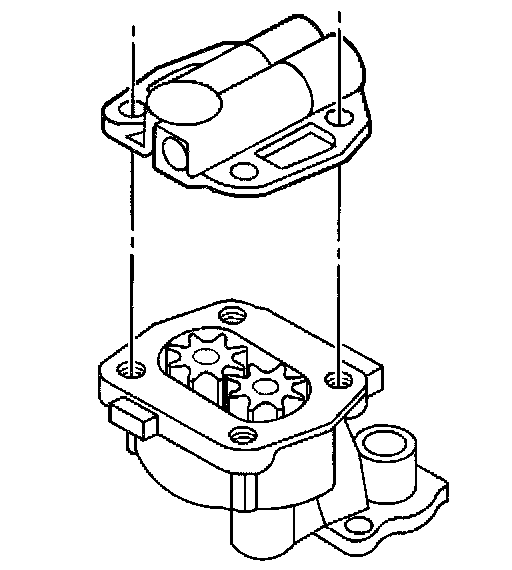

2. Install the oil pump gears.





3. Install the oil pump cover.

Notice: Refer to Fastener Notice in Service Precautions.

4. Install the oil pump cover bolts.
- Tighten the oil pump cover bolts to 10 Nm (89 inch lbs.).

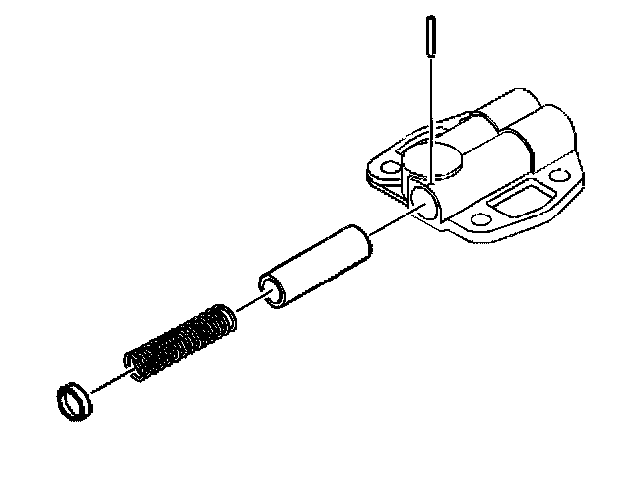

5. Install the pressure regulator valve.
6. Install the pressure regulator spring.
7. Install the coffer pin.

Important: Make sure the cotter pin is properly secured.

8. Apply sealer GM P/N 1050026 or the equivalent to the new suction pipe.
9. Tap the new suction pipe into place using a plastic hammer. Use the J21882.
