76. Cylinder Head Installation - Right

This article has been updated with TSB 02-06-01-003B, 4/15/08
This bulletin is being revised to include a Notice advising that the cylinder head bolts are NOT TO BE RE-USED. Please discard Corporate Bulletin Number 02-06-01-003A.

Cylinder Head Installation - Right

- Tools Required
- J36660-A Torque Angle Meter

1. Install the dowel pins (cylinder head locator) (if necessary).
2. Inspect the dowel pins (cylinder head locator) for proper installation.

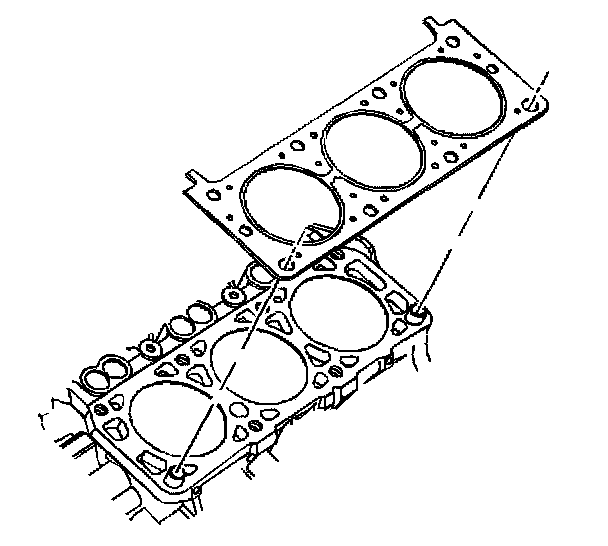

3. Install the cylinder head gasket.

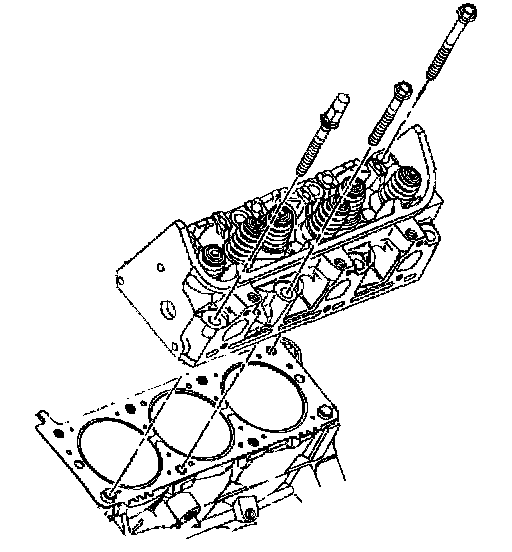

4. Install the cylinder head.

Notice: Refer to Fastener Notice in Service Precautions.

Notice: This component uses torque-to-yield bolts. When servicing this component, do not re-use the bolts. New torque-to-yield bolts must be installed. Re-using used torque-to-yield bolts will not provide proper bolt torque and clamp load. Failure to install NEW torque-to-yield bolts may lead to engine damage.





5. Install the NEW cylinder head bolts.

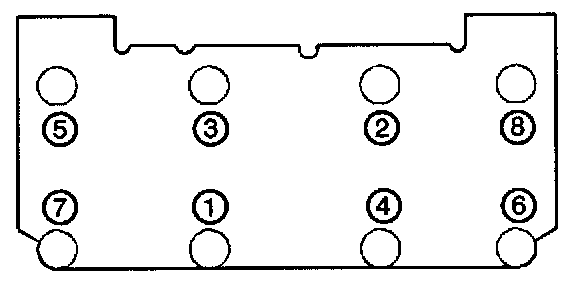

- Tighten the NEW cylinder head bolts to 60 Nm (44 lb ft) in the order shown. Use the J 36660-A torque angle meter in order to rotate the cylinder head bolts an additional 95 degrees.
