86. Exhaust Manifold Installation - Right
Exhaust Manifold Installation - RightNotice: Refer to Fastener Notice in Service Precautions.

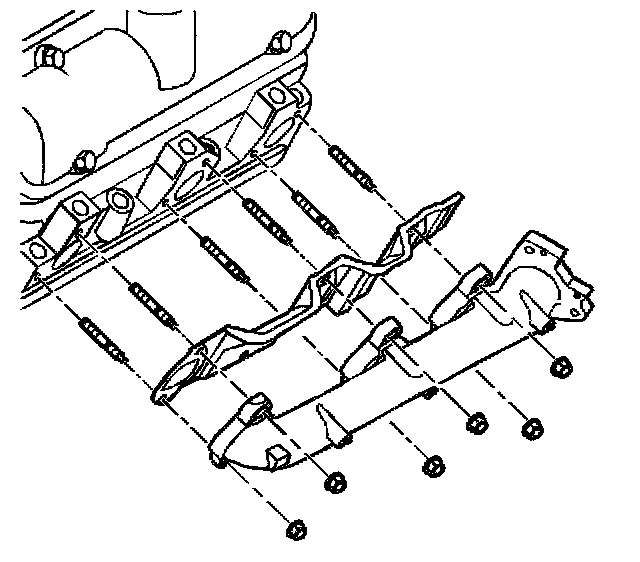

1. Install the exhaust manifold studs.
- Tighten the exhaust manifold studs to 18 Nm (13 ft. lbs.).
2. Install the exhaust manifold gasket.
3. Install the exhaust manifold.
4. Install the exhaust manifold nuts.
- Tighten the exhaust manifold nuts to 16 Nm (12 ft. lbs.).
5. Install the right side spark plugs. Tighten
- Tighten the spark plugs to 27 Nm (20 ft. lbs.) when installing spark plugs into a new cylinder head.
- Tighten the spark plugs to 15 Nm (13 ft. lbs.) when re-installing after initial installation.
6. Install the lower exhaust manifold heat shield.
7. Install the upper exhaust manifold heat shield.
8. Install the exhaust manifold heat shield bolts.
- Tighten the exhaust manifold heat shield bolts to 10 Nm (89 inch lbs.).

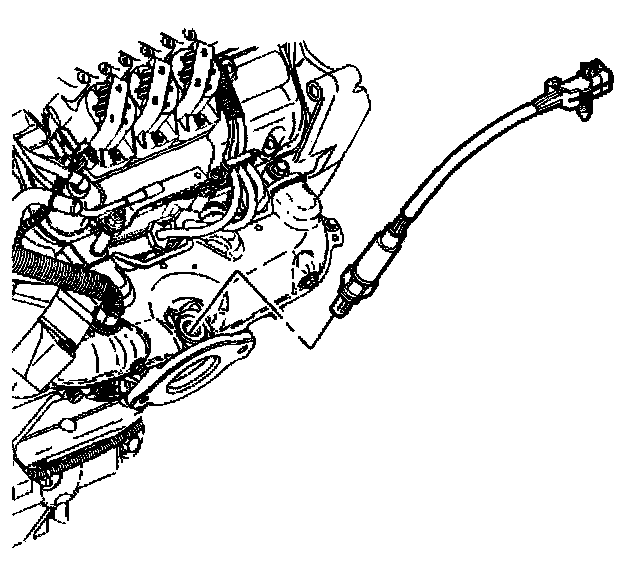

9. Install the heated oxygen sensor.
- Tighten the heated oxygen sensor to 42 Nm (31 ft. lbs.).
10. Install the spark plug wires.
