Ignition & Key Alarm Switch - Assemble

Notice: Refer to Fastener Notice in Service Precautions.





1. Install the ignition and key alarm switch assembly (3) onto the electronic lock module assembly (2) and secure by using the 2 tapping screws.
- Tighten the screws to 4.7 Nm (42 inch lbs.).
2. Install the key alarm connector (1) into the electronic lock module assembly (2).

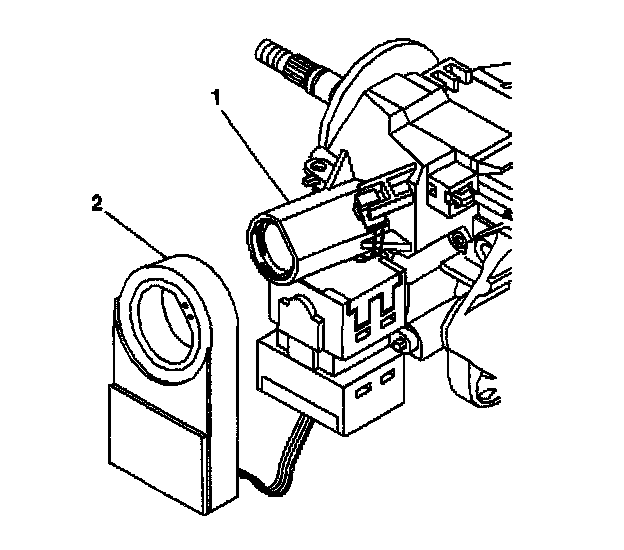

3. Slide the PASSKEYS (R) III (2) onto the electronic lock module assembly (1).





4. Slide the turn signal switch assembly connectors (2) to the bulkhead connector (1).

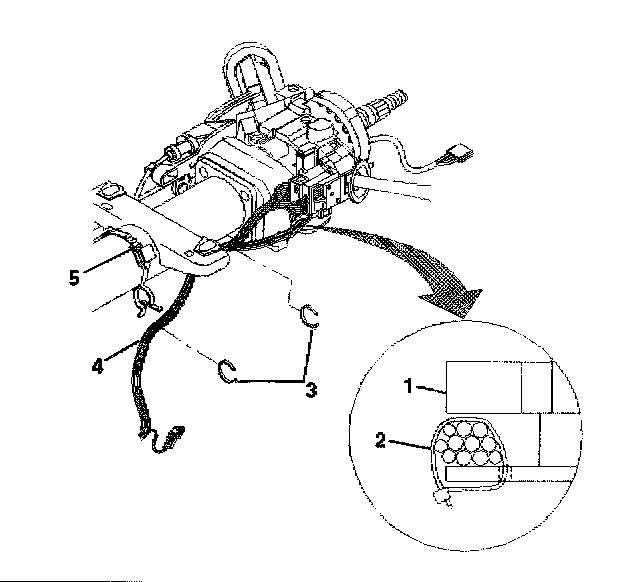

5. Install the wire harness assembly (4) into the wire harness strap (5).
6. Install the wire harness strap (2) into the steering column tilt head assembly (1).
7. Install the wire harness straps (3) onto the wire harness assembly (4).
8. Install the upper and lower trim covers. Refer to Steering Column Trim Covers-Assemble-Off Vehicle.
