Transmission Temperature Sensor/Switch: Service and Repair

Fluid Temperature Sensor Replacement

Removal Procedure
1. Remove the case side cover.

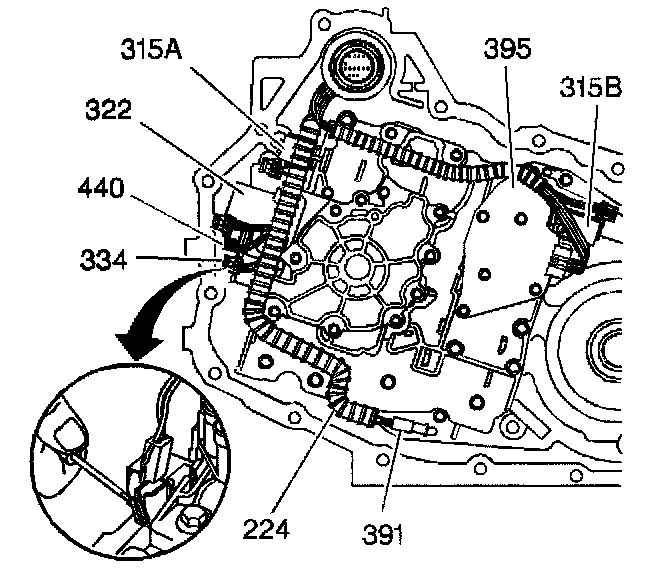

2. Remove the wiring harness assembly from the fluid temperature sensor (391).
3. Remove the fluid temperature sensor (391).

Installation Procedure





1. Install the fluid temperature sensor (391).
2. Install the wiring harness assembly to the fluid temperature sensor (391).
3. Install the case side cover.
