Power Mirror Switch

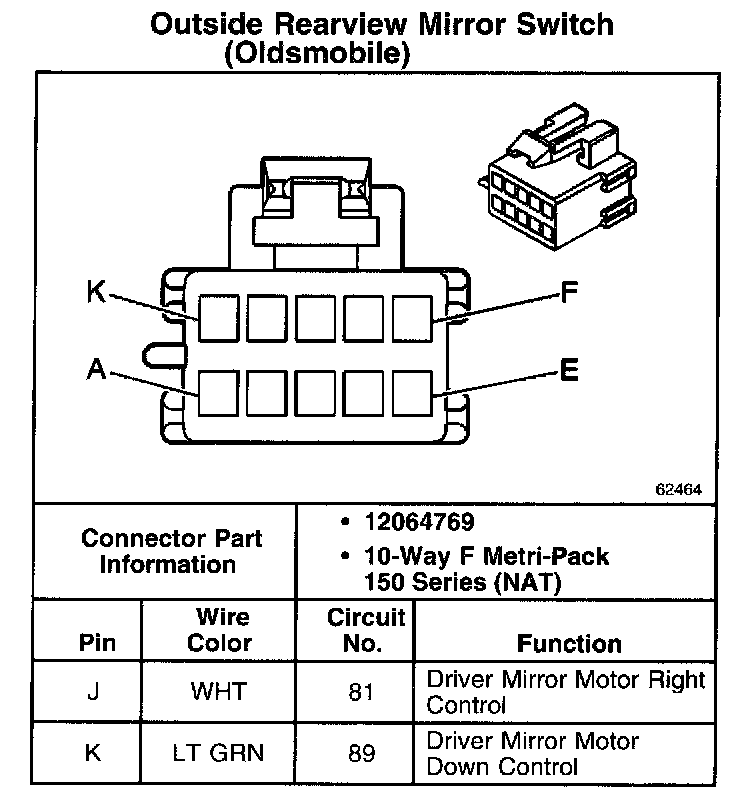

Outside Rearview Mirror Switch (Oldsmobile) Part 1:

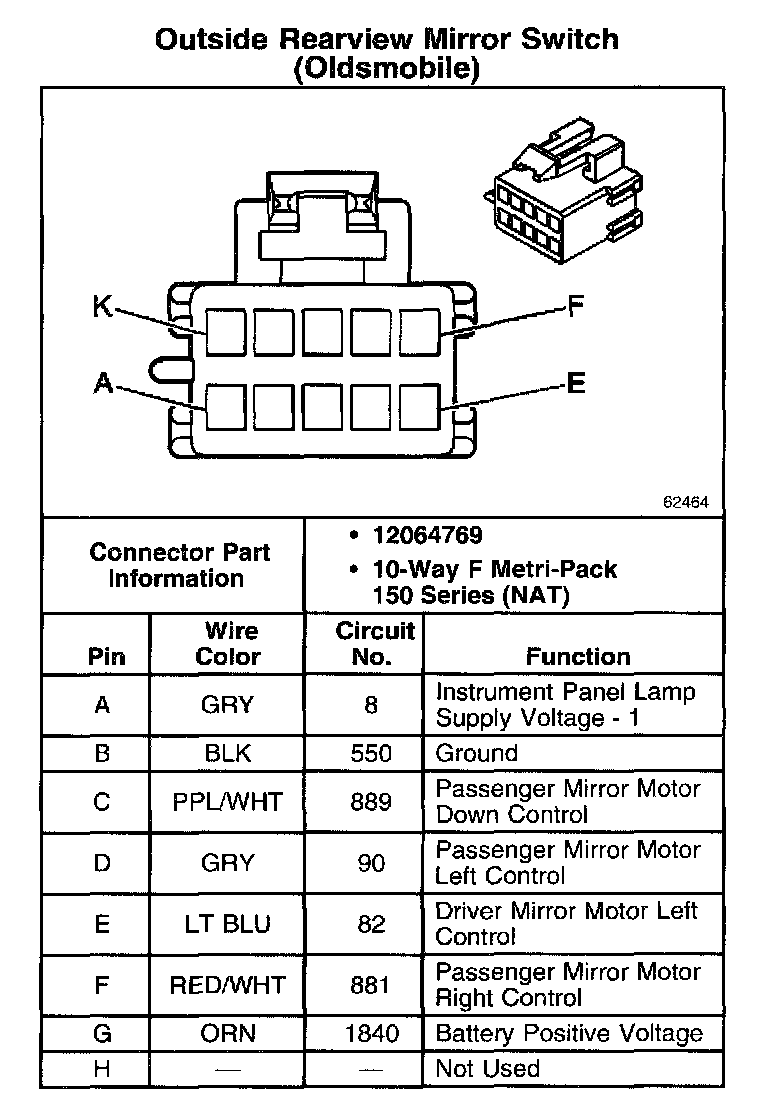

Outside Rearview Mirror Switch (Oldsmobile) Part 2:
