System Diagram

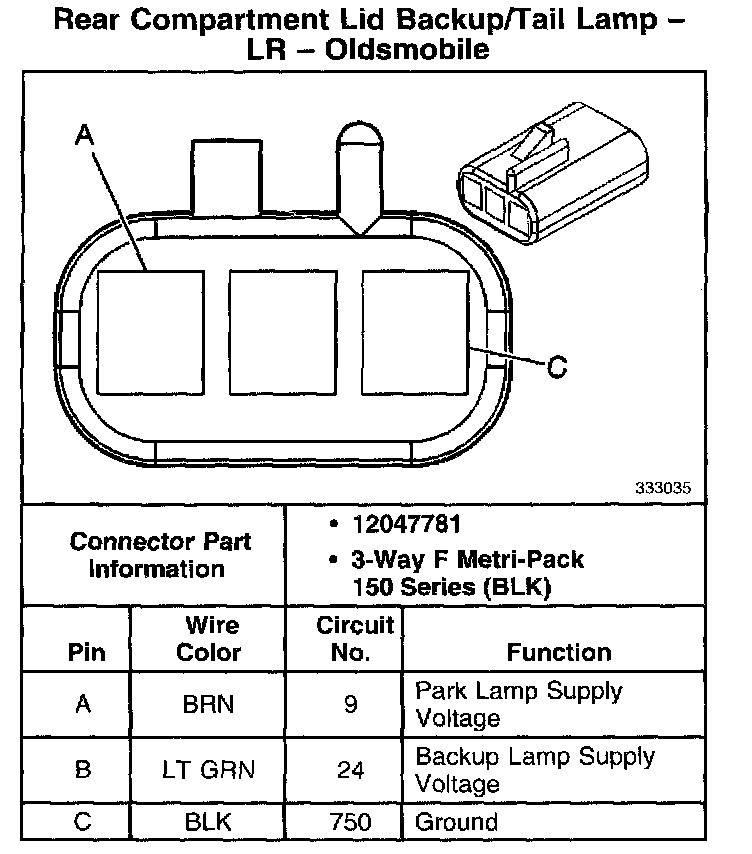

Rear Compartment Lid Backup/Tail Lamp - LR - Oldsmobile:

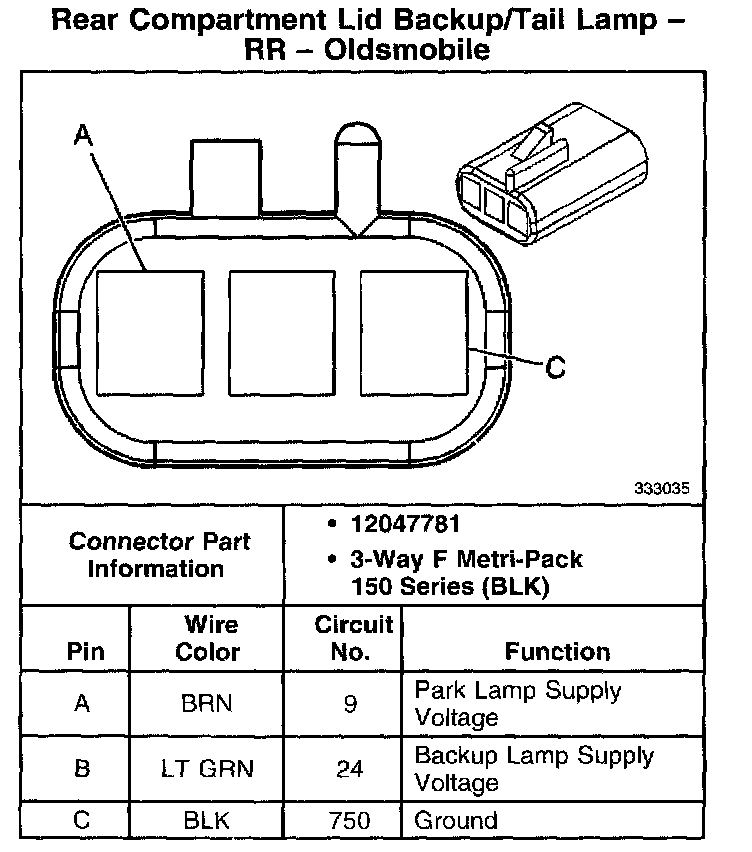

Rear Compartment Lid Backup/Tail Lamp - RR - Oldsmobile:
