58. Intake Manifold Clean and Inspect - Upper

Intake Manifold Cleaning and Inspection - Upper

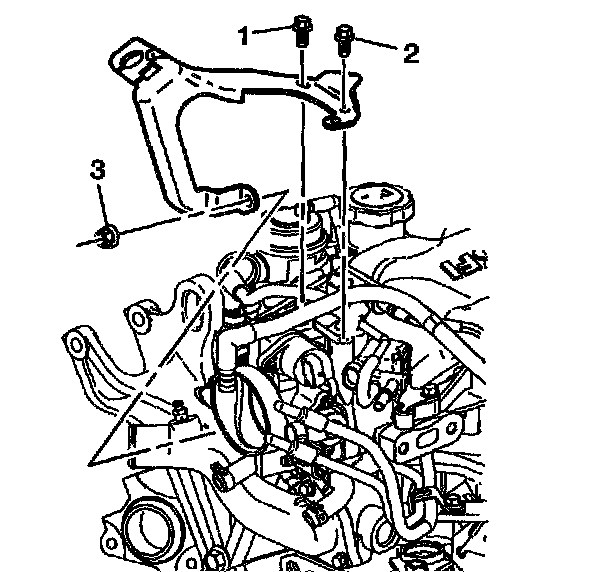

1. Remove the accelerator control cable bracket bolts (1, 2) and the nut (3).
2. Remove the accelerator control cable bracket.

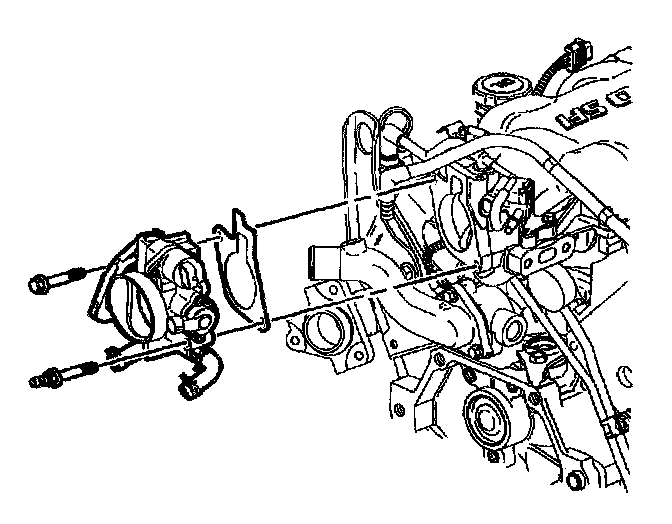

3. Remove the throttle body bolt and stud.
4. Remove the throttle body.
5. Remove the throttle body gasket.

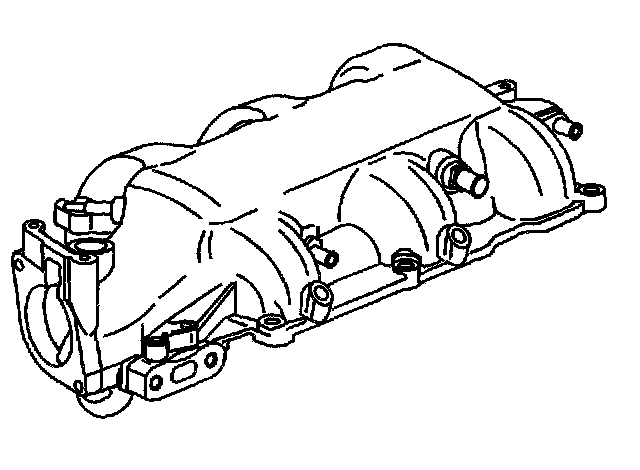

6. Clean the intake manifold gasket surfaces.
7. Clean the intake manifold bolts and studs.
8. Inspect the intake manifold mating surfaces for nicks or cracks.
Replace the intake manifold if damaged.

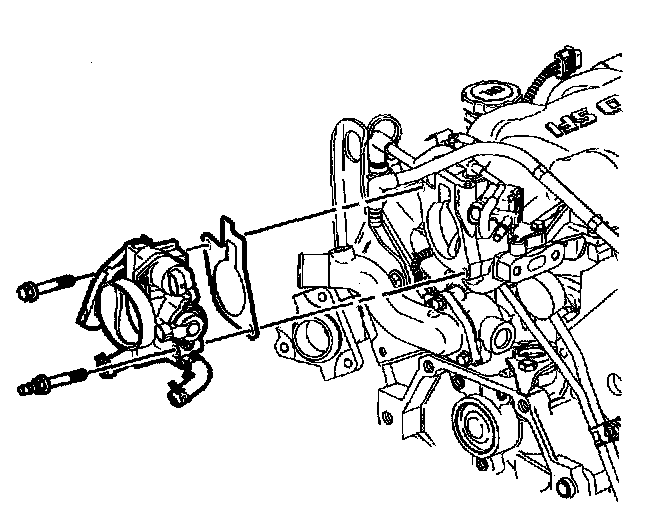

9. Install the throttle body gasket.
10. Install the throttle body.

Notice: Refer to Fastener Notice in Service Precautions.

11. Install the throttle body bolt and stud.
Tighten the throttle body bolt and stud to 25 Nm (18 ft. lbs.).

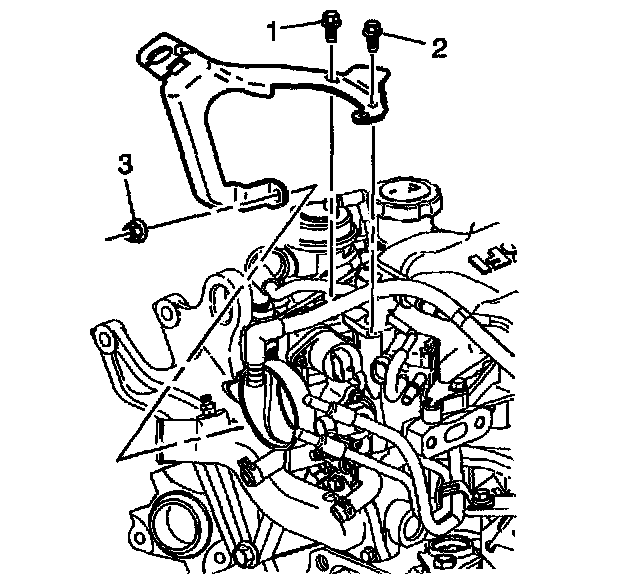

12. Install the accelerator control cable bracket.
13. Install the accelerator control cable bracket bolts and nut.
Tighten the accelerator control cable bracket bolts in sequence (1, 2, 3) to 10 Nm (89 inch lbs.).
