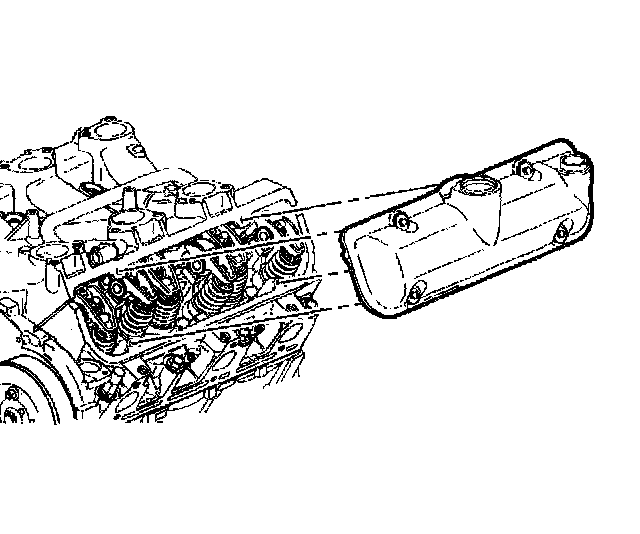

87. Valve Rocker Arm Cover Installation - Left

Valve Rocker Arm Cover Installation - Left





1. Install the valve rocker arm cover gasket into the valve rocker arm cover.
2. Apply sealer GM P/N United States 12345739, GM P/N Canada 10953541 or the equivalent to the notches where the cylinder head and intake manifold meet.
3. Install the valve rocker arm cover.

Notice: Refer to Fastener Notice in Service Precautions.

4. Install the valve rocker arm cover bolts.
Tighten the valve rocker arm cover bolts to 10 Nm (89 inch lbs.).
