Blower Motor Always On

TEST DESCRIPTION

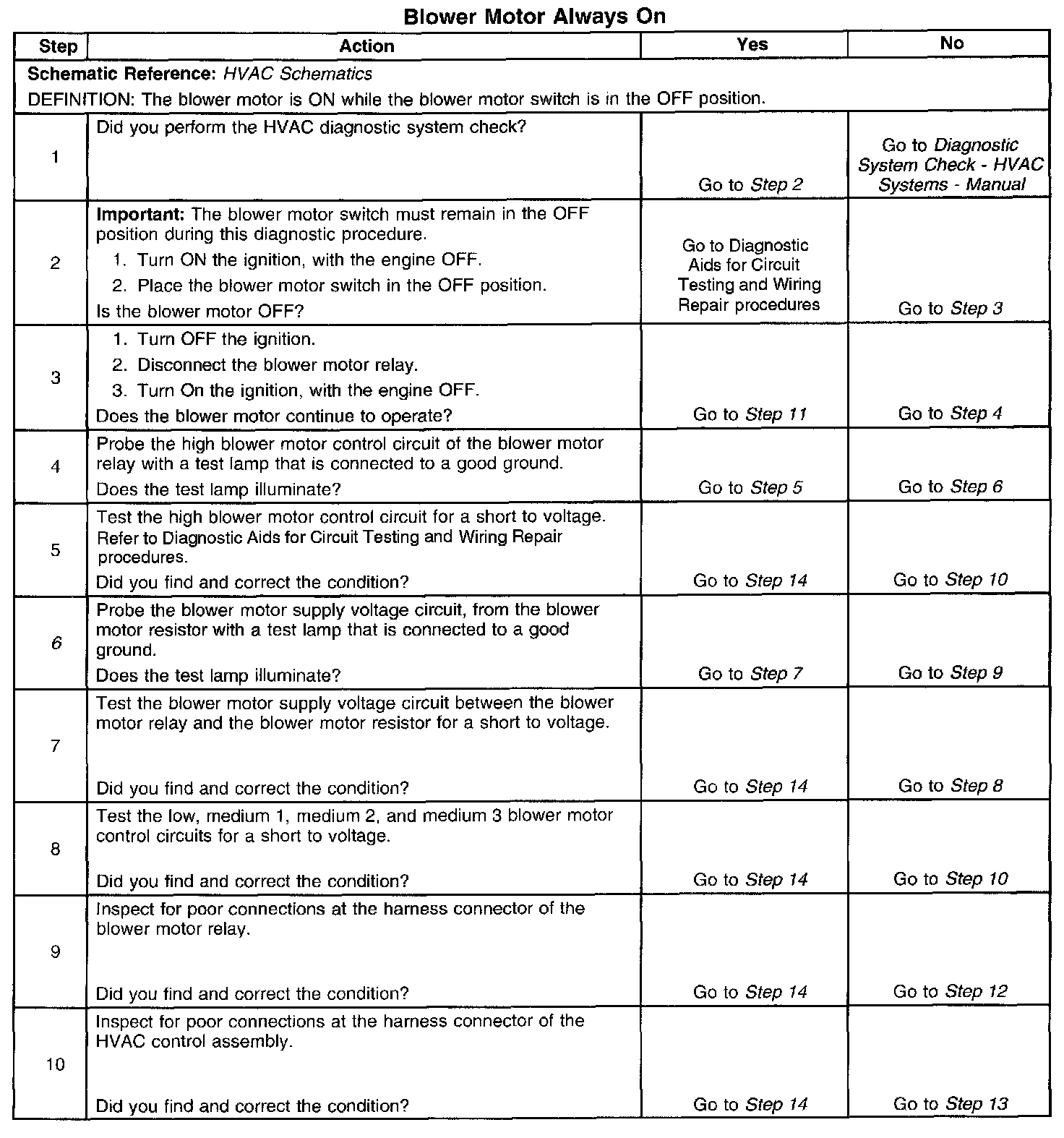

Steps 1-10:

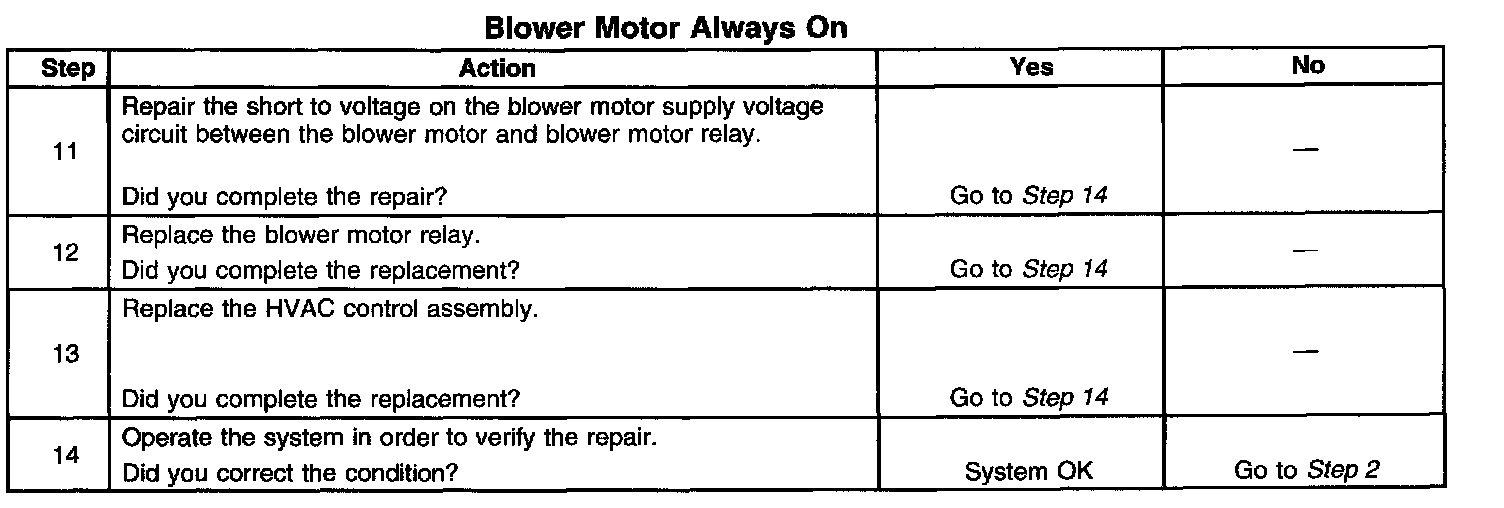

Steps 11-14:

The number below refers to the step number in the diagnostic table.
6. There are two blower motor supply voltage circuits at the blower motor relay. Probe the circuit that is connected to the blower motor resistor assembly.
