Intermediate Steering Shaft Seal

Seal Replacement - Intermediate Steering Shaft

Removal Procedure





1. Remove the intermediate shaft.

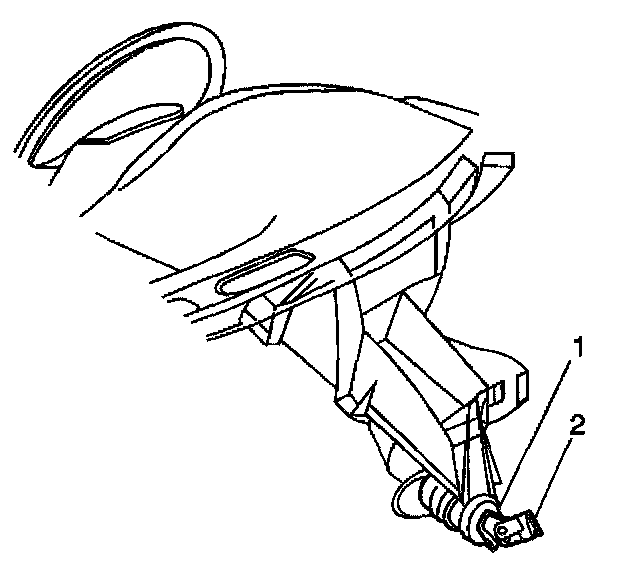

2. Remove the intermediate shaft seal (1).

Installation Procedure

Caution: if column to cowl panel seal is torn or otherwise damaged, it must be replaced. Confirm that the seal and inner race are properly located. Failure to do so may allow carbon monoxide into the vehicle, which may result in serious personal injury or death.

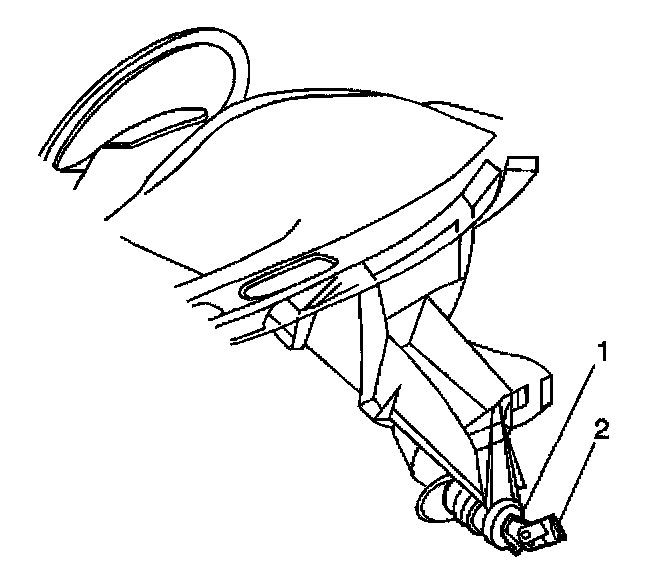

1. Install the intermediate shaft seal (1).
2. Install the intermediate shaft.
