107. Vehicle Speed Sensor Installation

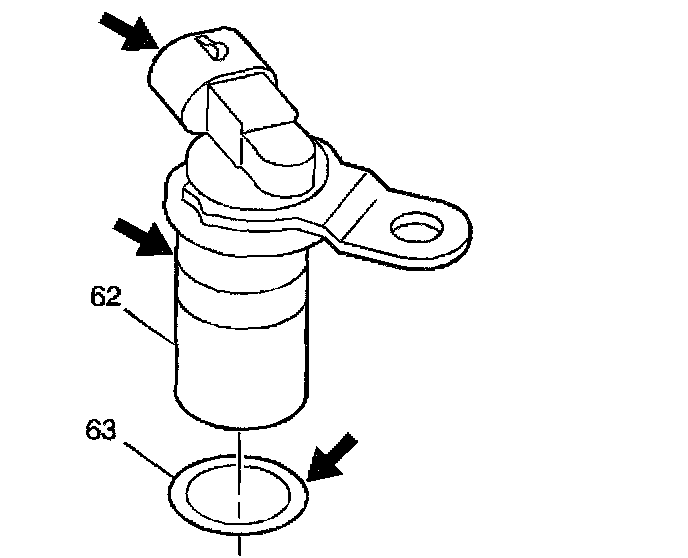

1. Inspect the vehicle speed sensor (62) for damage to the sensor, the electrical connector, or the O-ring (63).
2. Clean and dry the vehicle speed sensor (62).

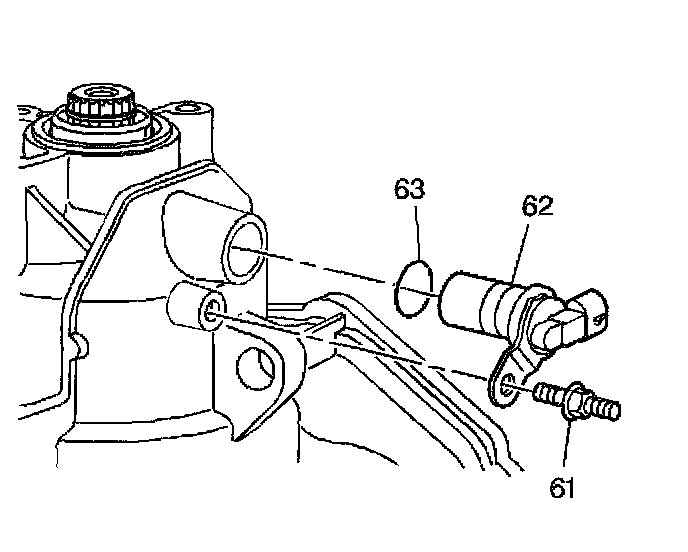

3. Install the O-ring (63) onto the speed sensor (62).
4. Install the speed sensor (62) into the transmission case.

Notice: Refer to Fastener Notice in Service Precautions.

5. Install the speed sensor stud (61).
^ Tighten the speed sensor stud to 12 Nm (9 ft. lbs.).
