Clutch Pedal Spongy

Clutch Pedal Spongy





Diagnostic Aids
If the clutch pedal feels spongy when depressed, check for a faulty master cylinder or a faulty concentric slave cylinder parts.

Test Description

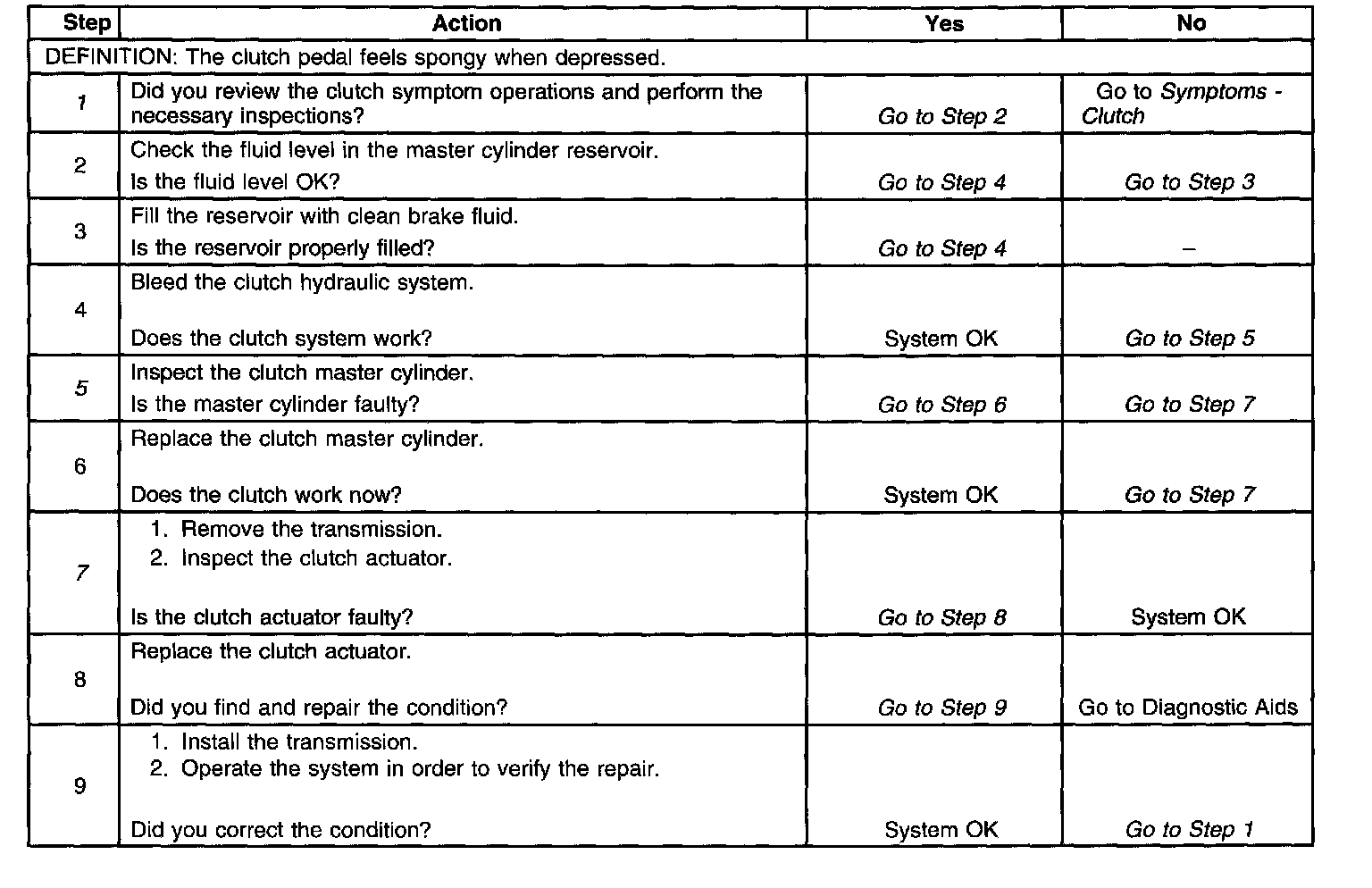

The numbers below refer to the step numbers on the diagnostic table.
1. This step explains there parts and the operation of the clutch system.
5. This step inspects for a faulty master cylinder.
7. This step inspects for a faulty concentric slave cylinder.
