HVAC System - Automatic

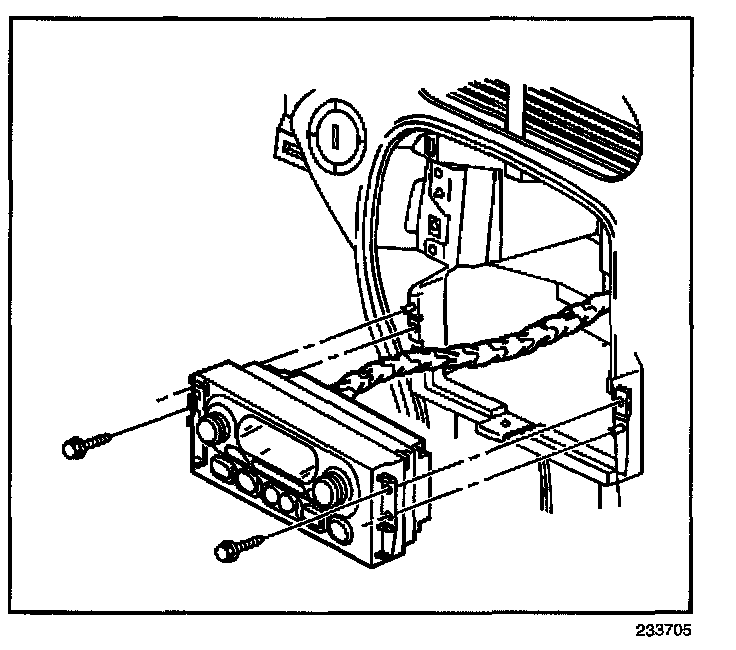

REMOVAL PROCEDURE




1. Remove the instrument panel accessory trim plate.
2. Remove the HVAC control module mounting screws.
3. Remove the screws from the HVAC control module.
4. Disconnect the electrical connector from the HVAC control module.
5. Remove the HVAC control module from the instrument panel.

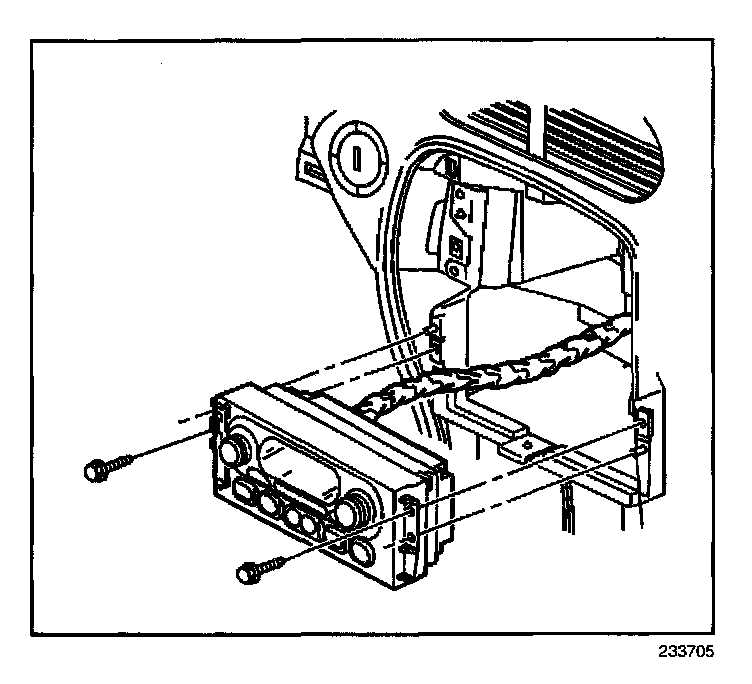

INSTALLATION PROCEDURE




1. Connect the electrical connectors to the HVAC control module.
2. Install the HVAC control module to the instrument panel.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the screws to the HVAC control module.

Tighten
Tighten the screws to 2 N.m (18 lb ft).

4. Install the instrument panel accessory trim plate.
