HVAC System - Manual

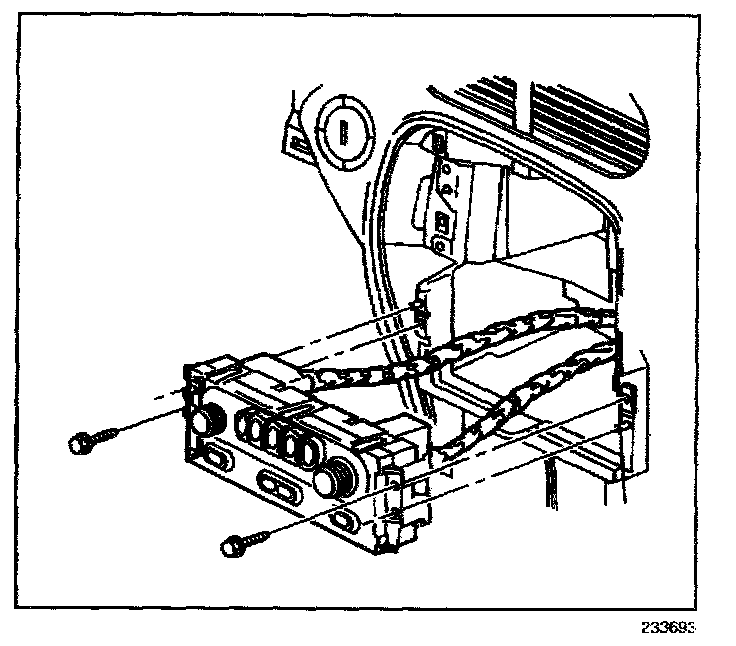

REMOVAL PROCEDURE




1. Remove the instrument panel accessory trim plate.
2. Remove the screws from the HVAC control assembly.
3. Disconnect the electrical connectors from the HVAC control assembly.
4. Remove the HVAC control assembly from the instrument panel.

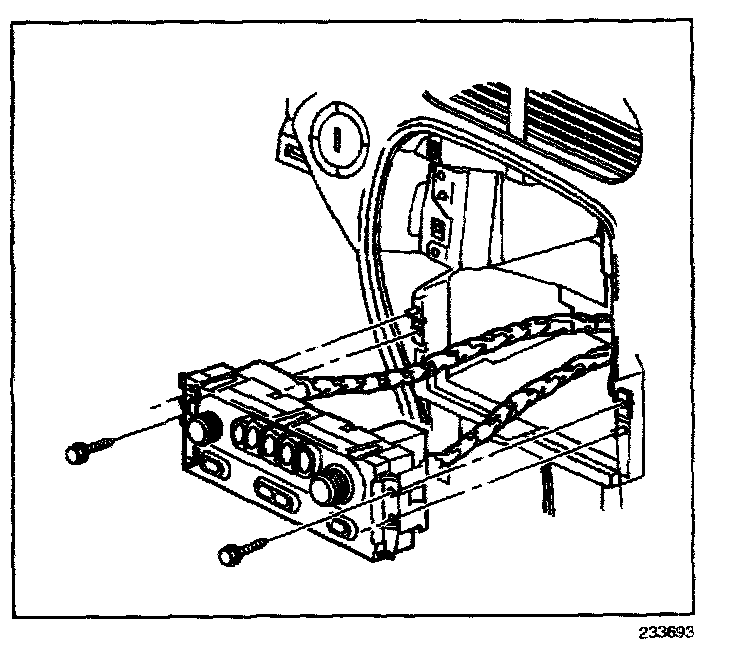

INSTALLATION PROCEDURE




1. Connect the electrical connectors to the HVAC control assembly.
2. Install the HVAC control assembly to the instrument panel.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the screws to the HVAC control assembly.

Tighten
Tighten the screws to 2 N.m (18 lb ft).

4. Install the instrument panel accessory trim plate.
