On-Vehicle

Specifications

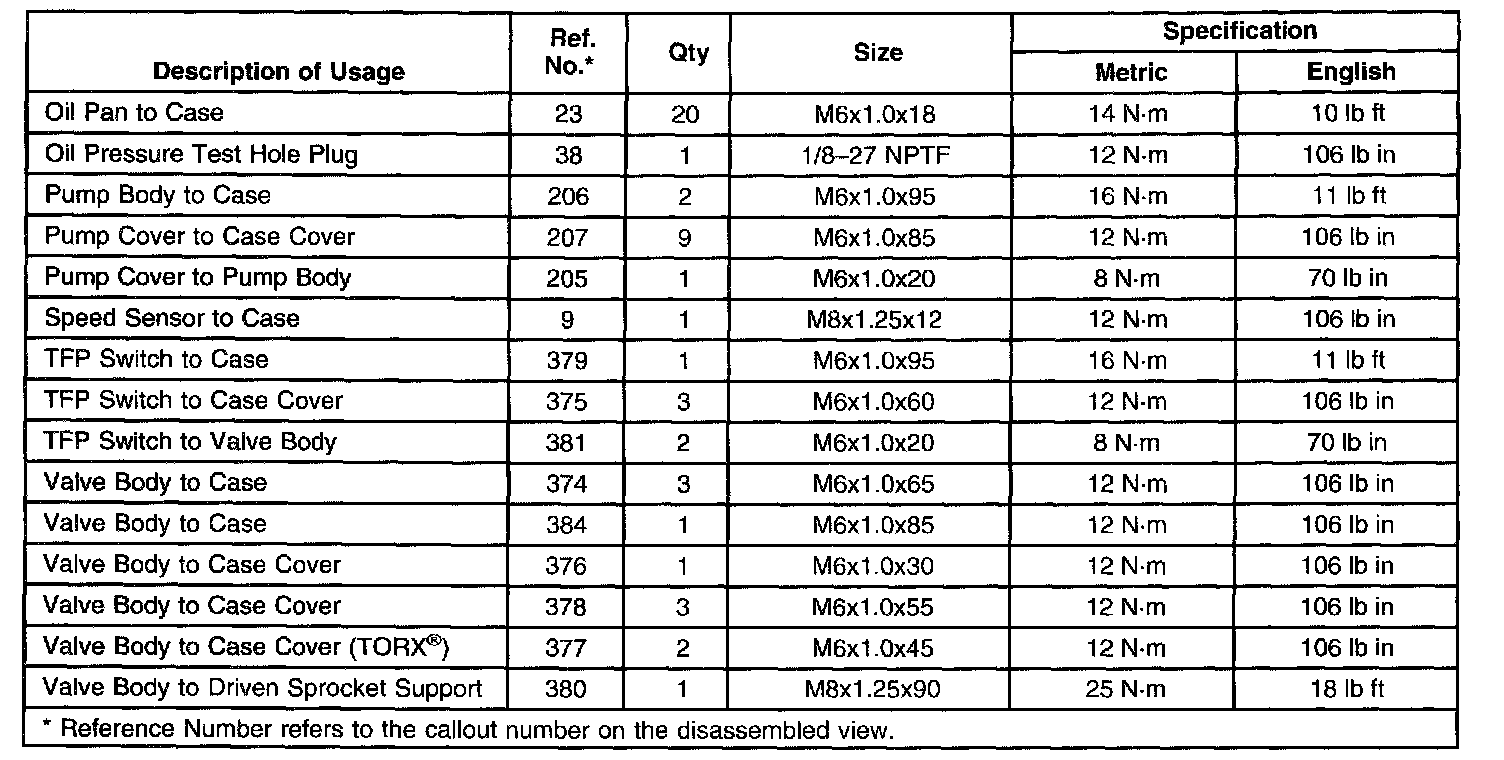

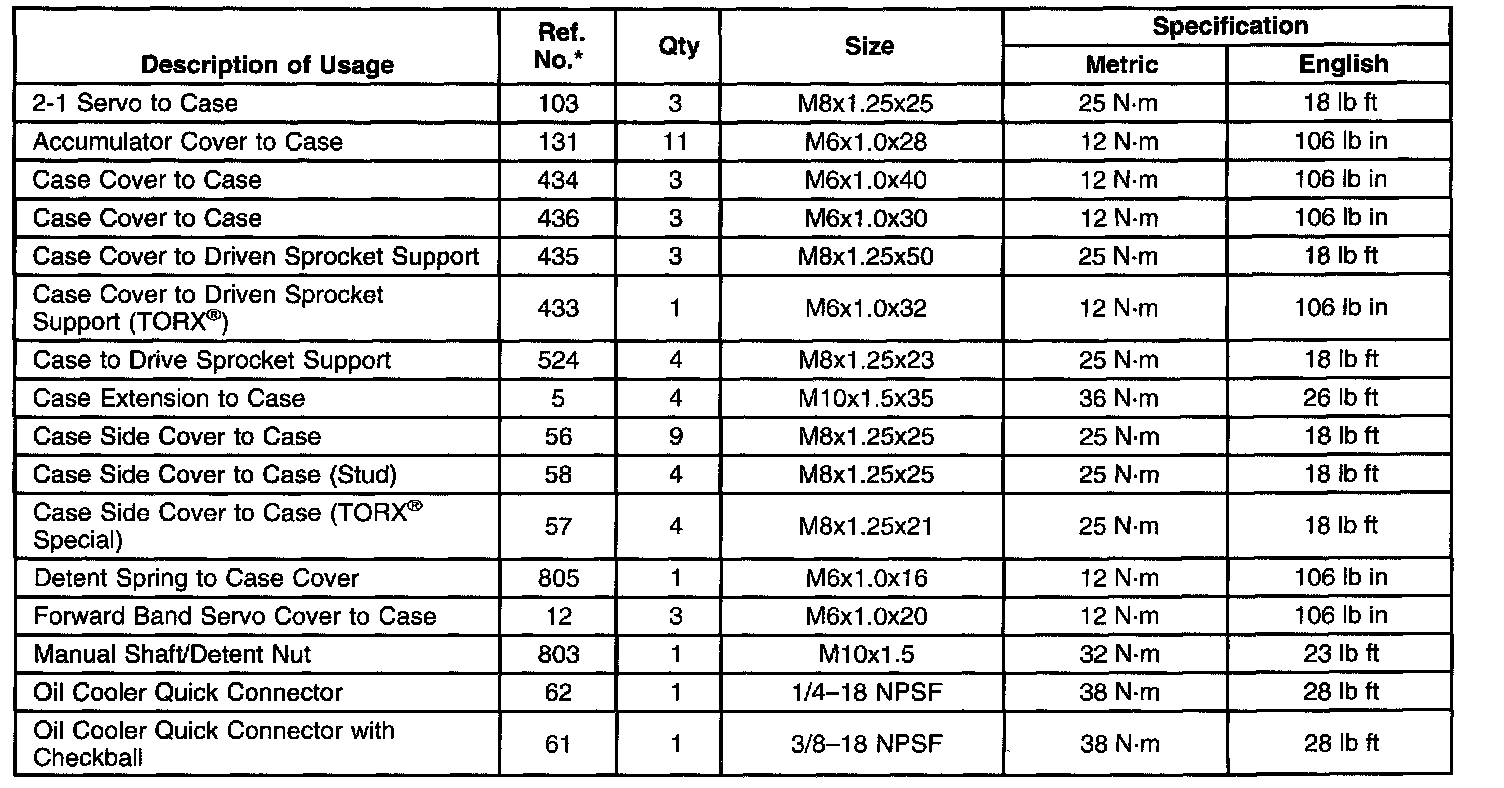

Fastener Tightening Specifications

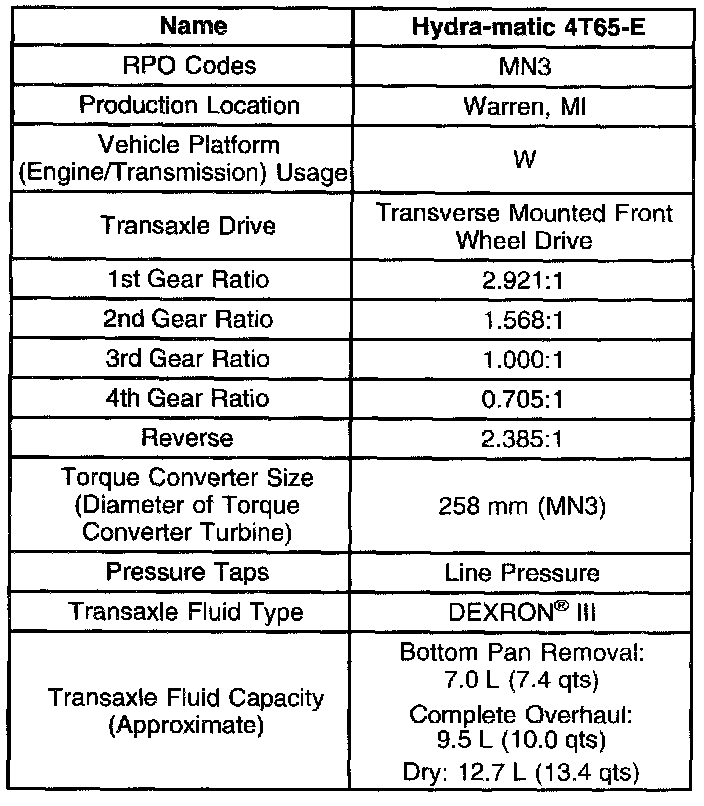

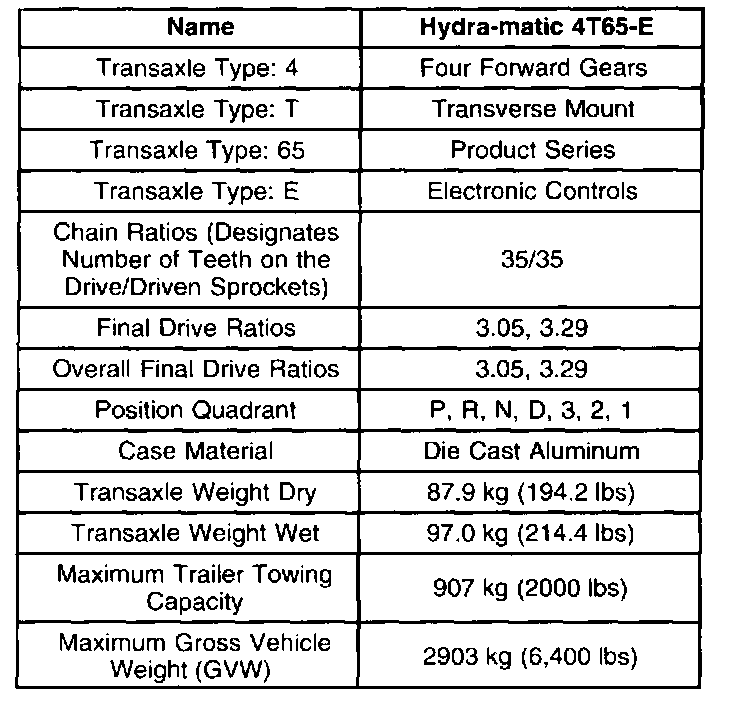

Transmission General Specifications





Range Reference

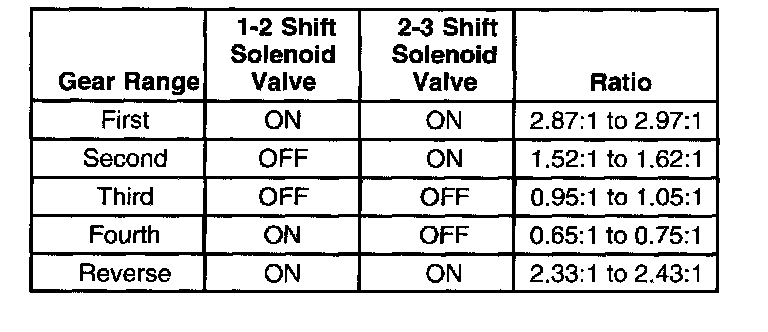

Shift Solenoid Valve State And Gear Ratio





Shift Speed
