Power Door Lock Switch Replacement
POWER DOOR LOCK SWITCH REPLACEMENTREMOVAL PROCEDURE

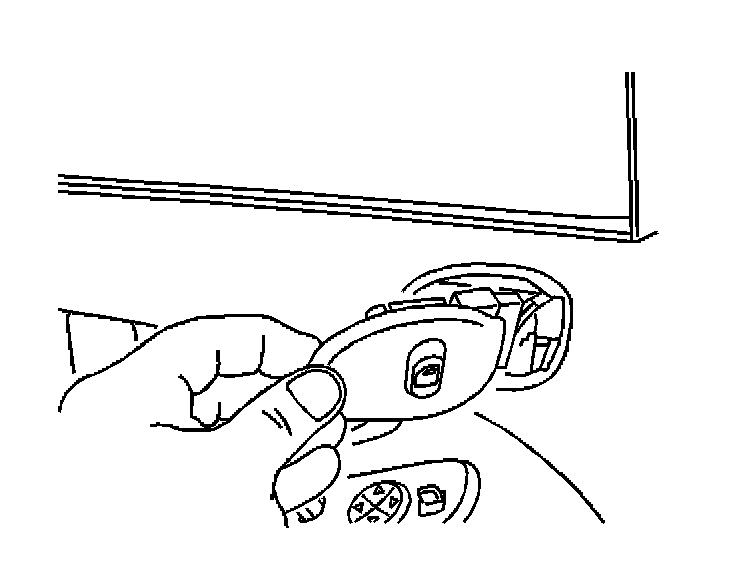

1. Using a flat-bladed tool release the retaining clip on the side of the power door lock switch bezel.
2. Remove the power door lock switch bezel from the door trim finish panel.

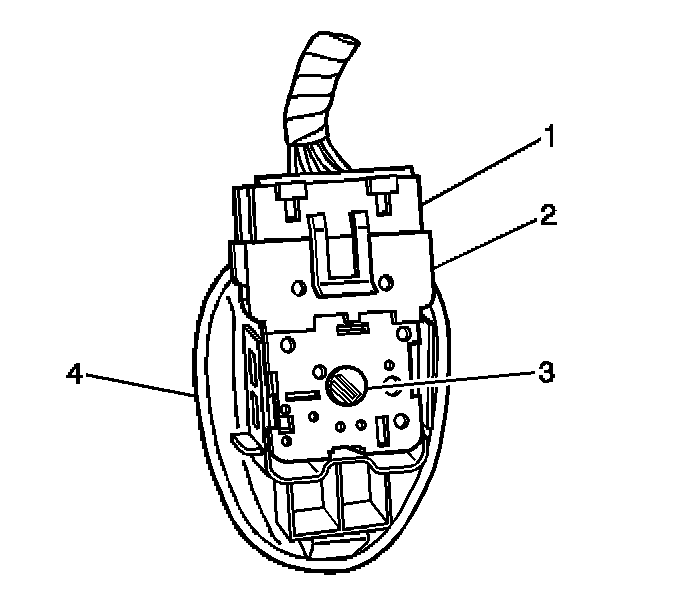

3. Disconnect the electrical connector (1) from the power door lock switch (2).
4. Release the power door switch tabs from the switch bezel.

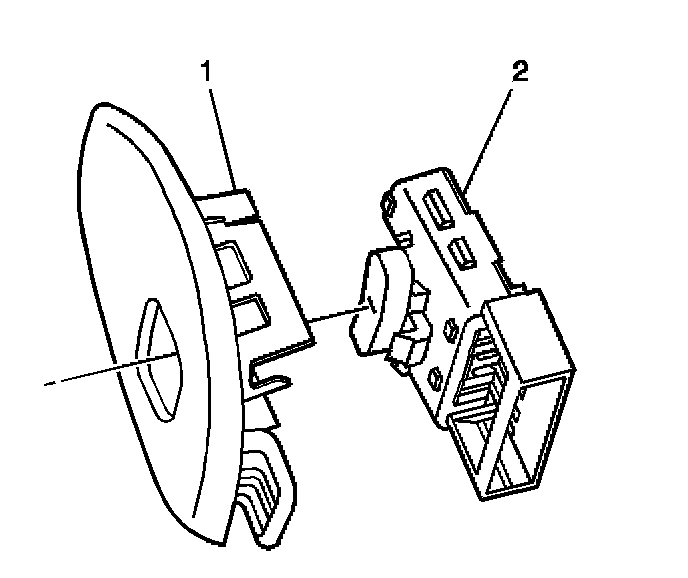

5. Remove the power door lock switch (2) by pushing the switch outward from the switch bezel (1).
INSTALLATION PROCEDURE

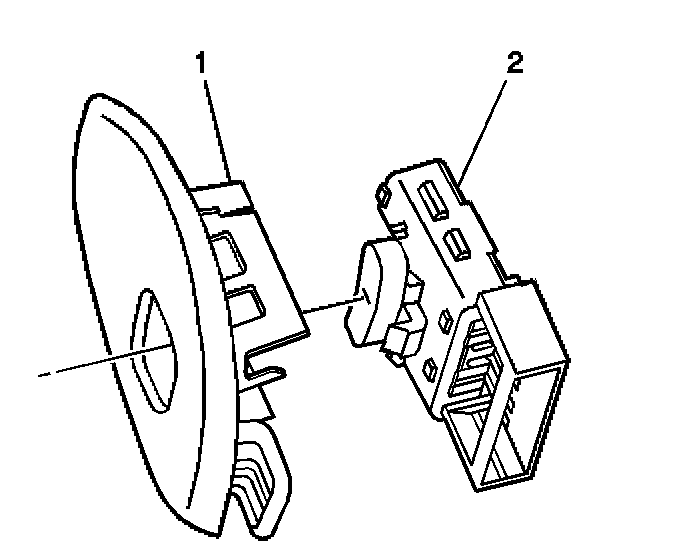

1. Align the power door lock switch (2) into the switch bezel (1).
Press the power door lock switch (2) into the switch bezel (1) until locking tabs are fully engaged.

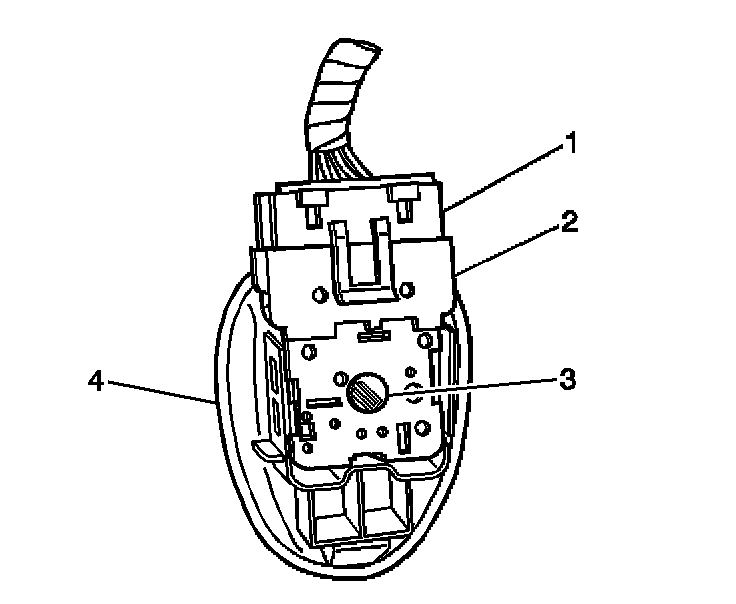

2. Connect the electrical connector (1) to the power door lock switch (2).
3. Align the power door lock switch into the opening on the door trim panel.

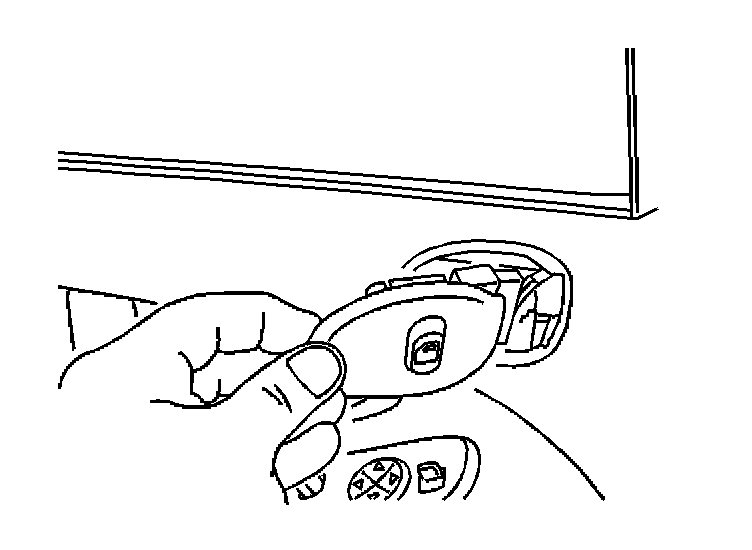

4. Press the power door lock switch bezel into the door trim finish panel until the retaining clip is fully engaged.
