20. Engine Block Disassemble

Engine Block Disassemble

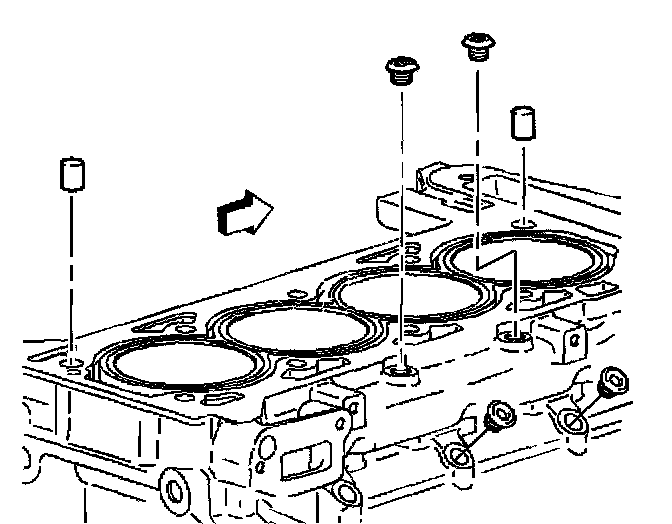

1. Remove the water jacket drain plug.
2. Remove the oil flow check valve.
3. Remove the oil passage plug.
4. Remove the rear oil passage plug.





5. Remove the knock sensor and bolt.





6. Remove the oil pressure switch.

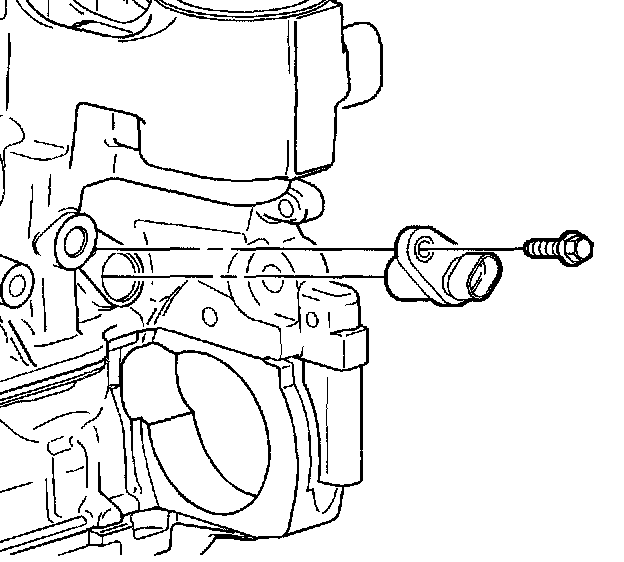

7. Remove the crankshaft position sensor and bolt.
