Electrical Diagrams

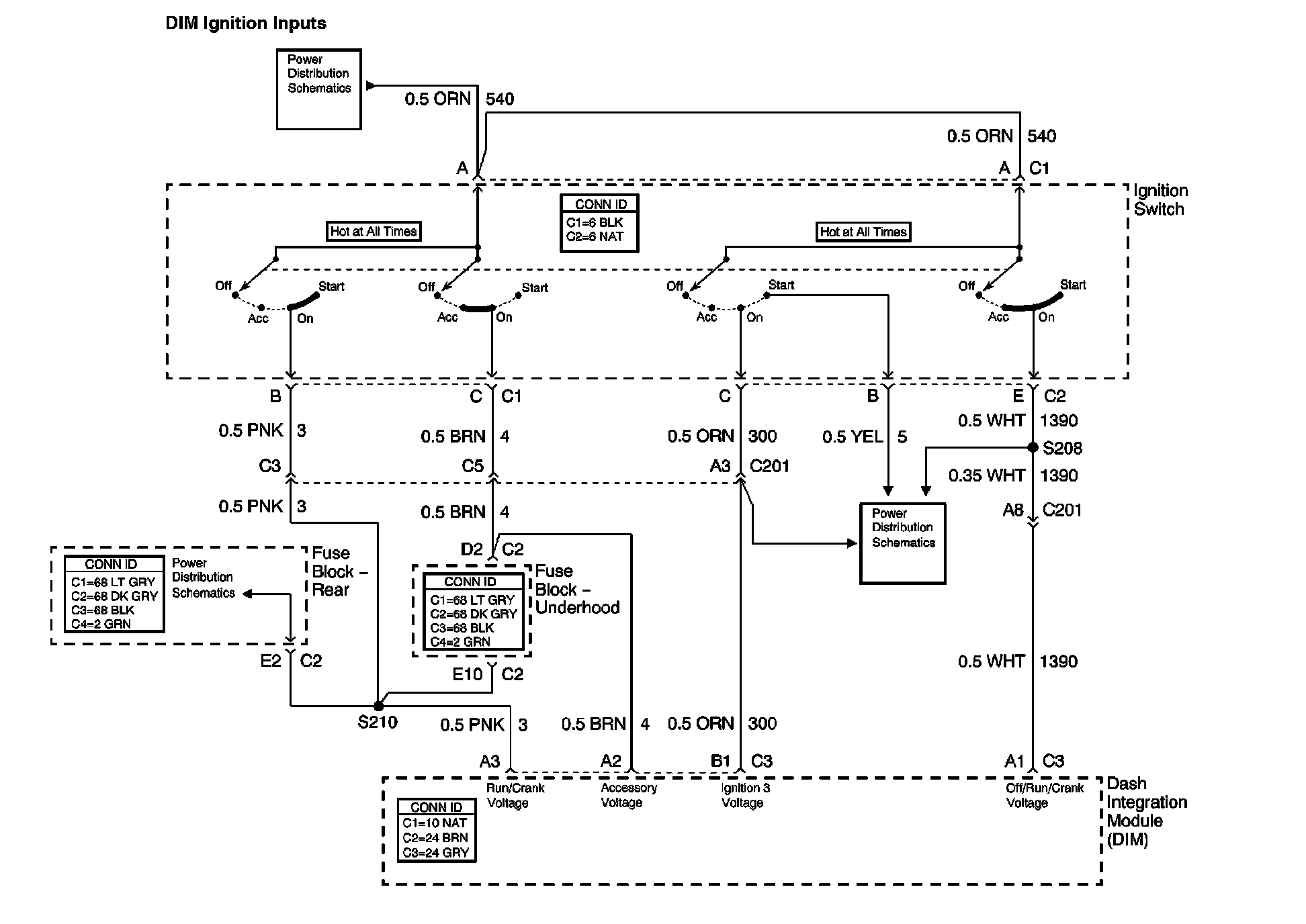

Body Control System Diagram 1:

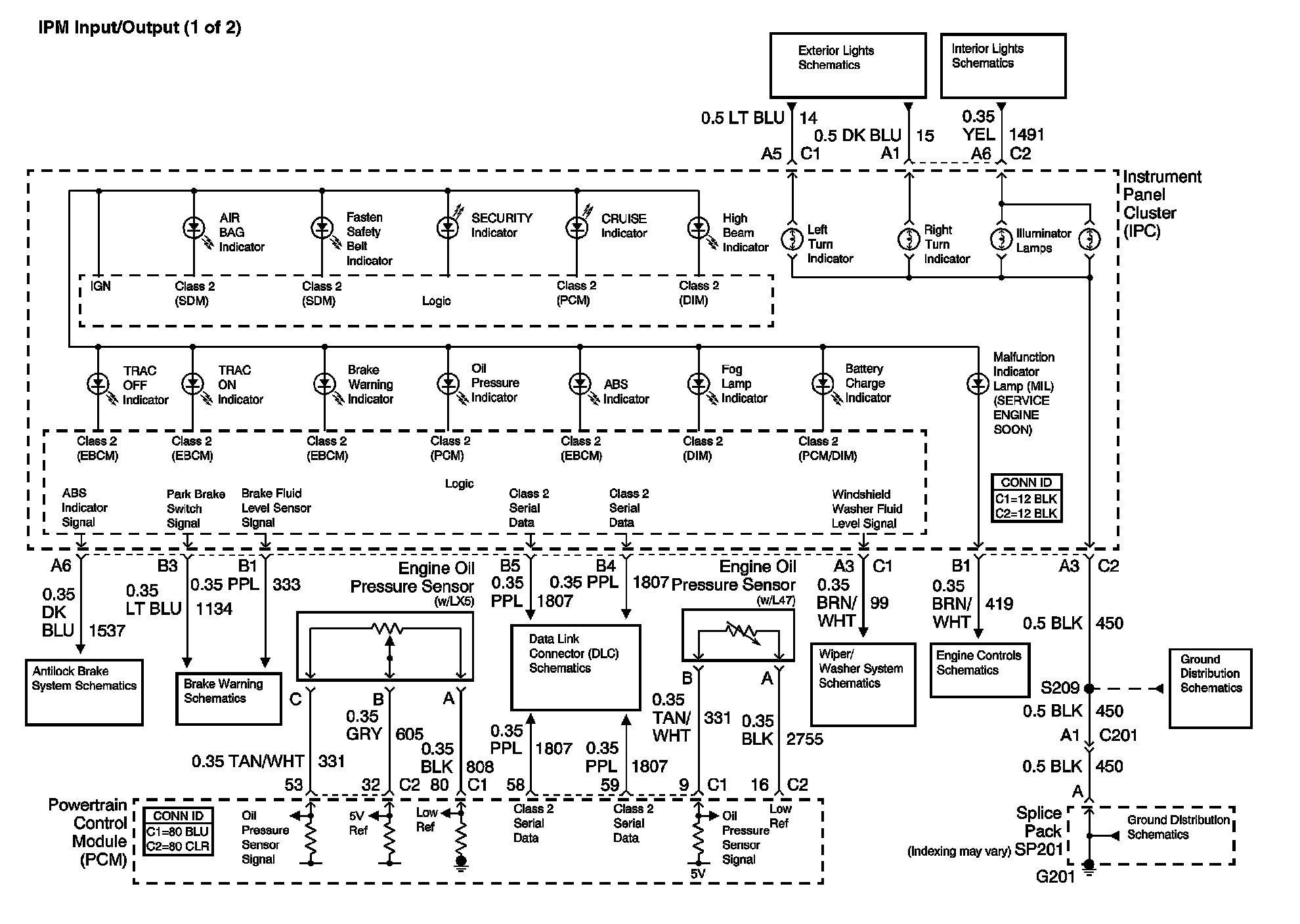

Body Control System Diagram 2:

Body Control System Diagram 3:

Body Control System Diagram 4:

Body Control System Diagram 5:

Body Control System Diagram 6:

Body Control System Diagram 7:

Body Control System Diagram 8:

Body Control System Diagram 9 (1 Of 2):

Body Control System Diagram 9 (2 Of 2):
