C101 - LH Body Harness Inline to Engine Harness

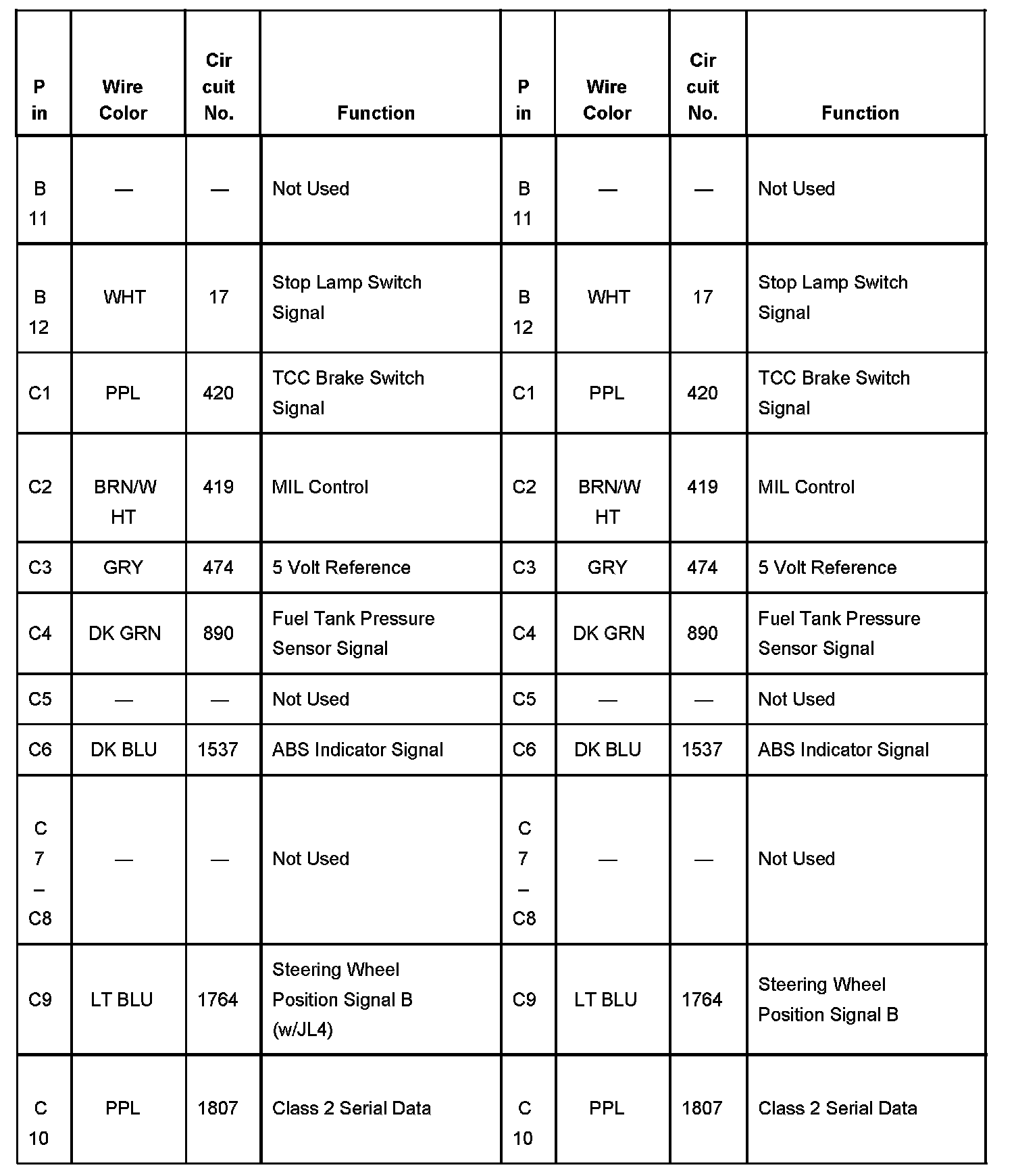

C101 - LH Body Harness Inline To Engine Harness Part 1:



C101 - LH Body Harness Inline To Engine Harness Part 2:



C101 - LH Body Harness Inline To Engine Harness Part 3:



C101 - LH Body Harness Inline To Engine Harness Part 4:
