Map Light

Courtesy/Reading Lamp - LR (With RPO Code +C96):

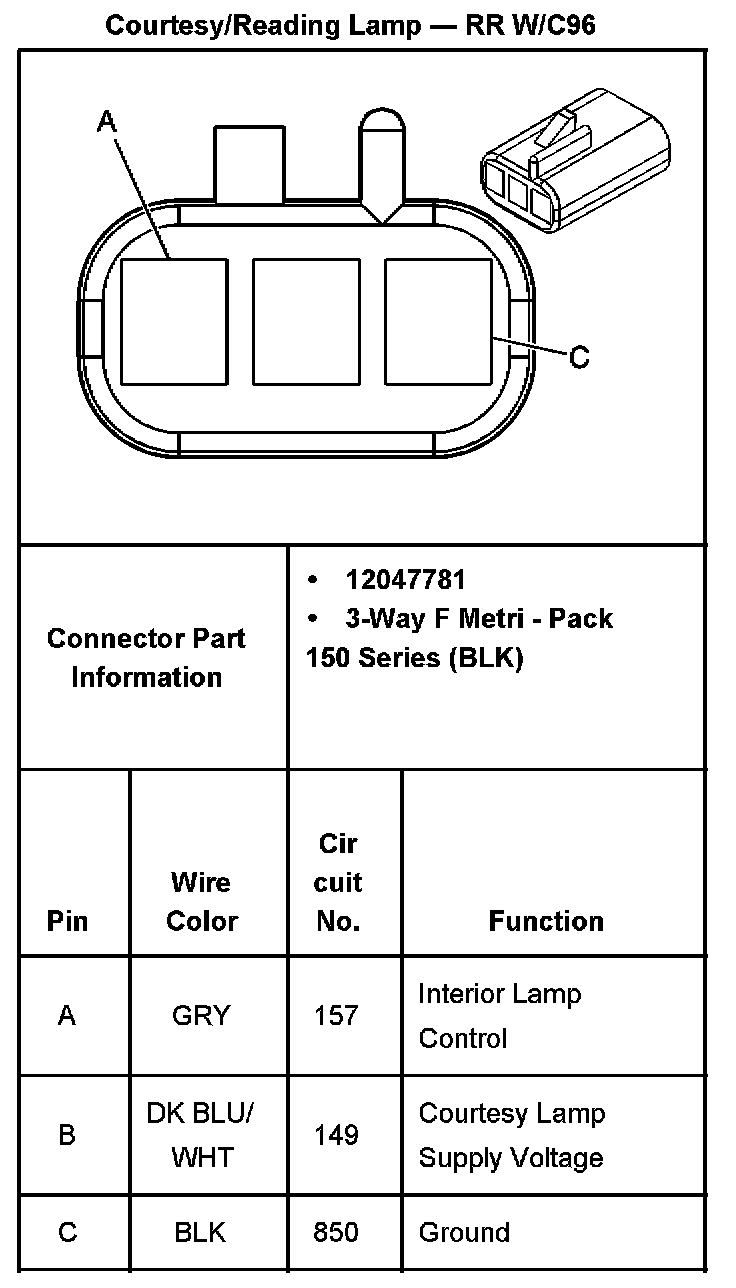

Courtesy/Reading Lamp - RR With RPO Code C96:
