Turn Signal Lamp: Diagrams
Turn Signal Lamp - LR:
Turn Signal Lamp - RR:
Park/Turn Signal Lamp - LF:

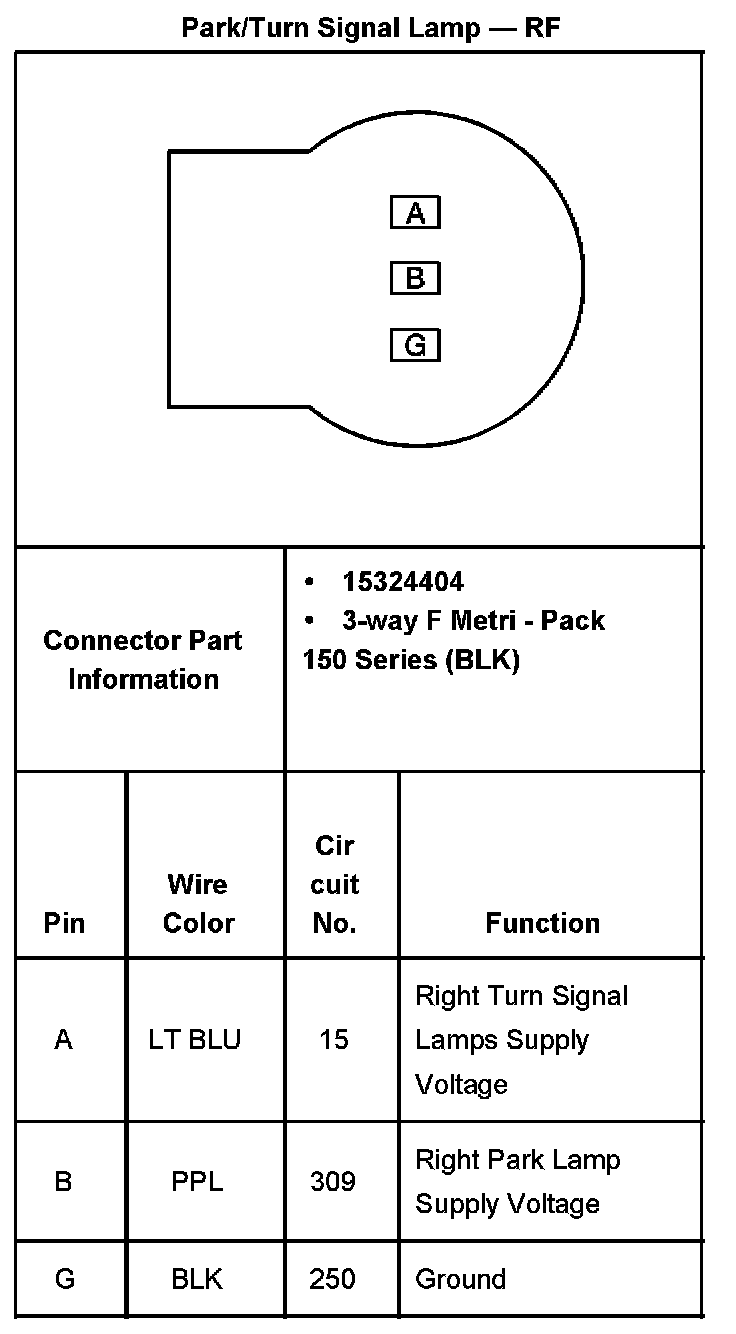

Park/Turn Signal Lamp - RF:
