General Specifications
Specifications

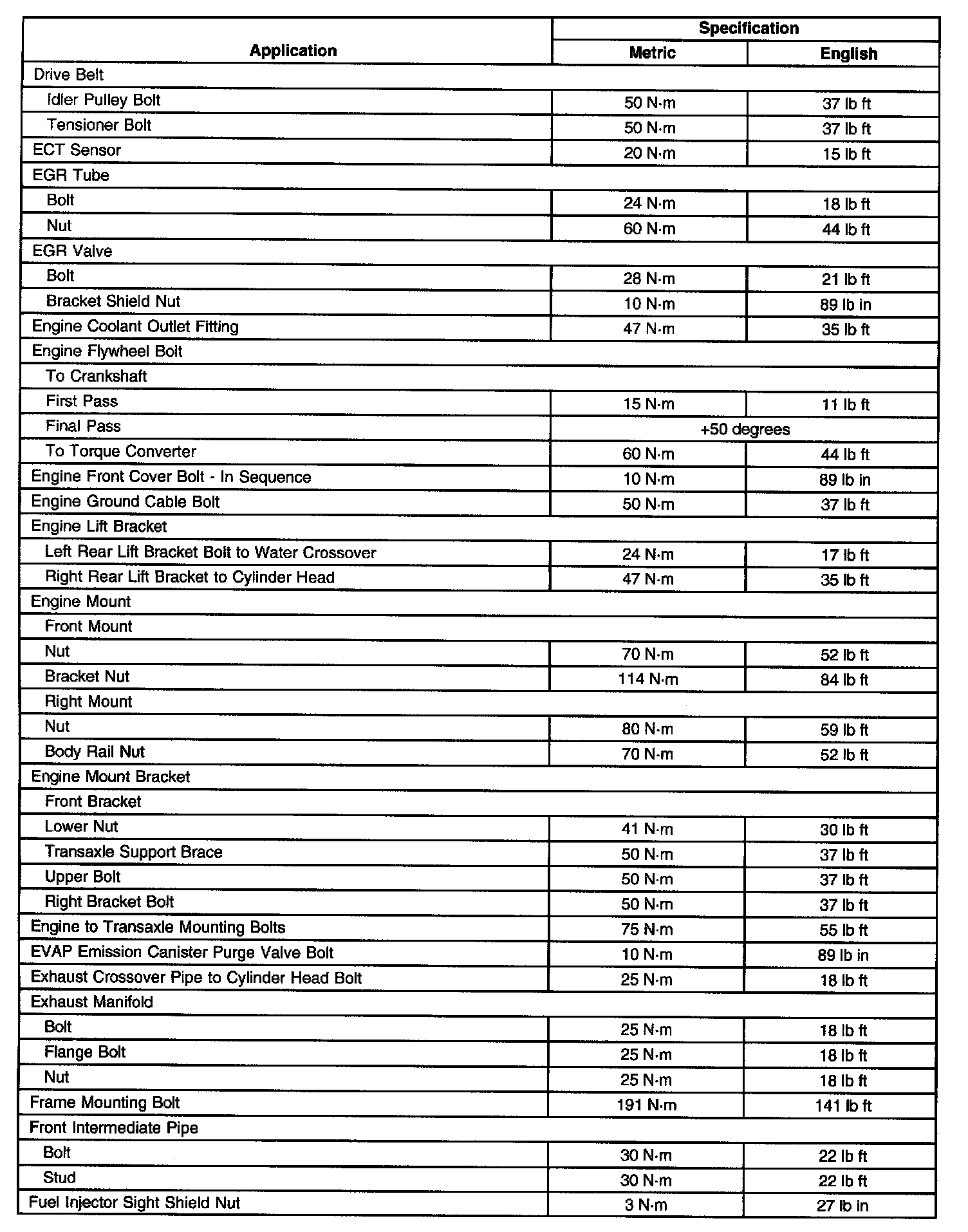

Fastener Tightening
Engine Mechanical
Sealers, Adhesives and Lubricants
Cylinder Head
Left Cylinder Head Tightening Sequence:
Right Cylinder Head Tightening Sequence:
Important: DO NOT reuse the M11 cylinder head bolts.
Note: Refer to Cylinder Head, Service and Repair for sequence and step details.
Intake Manifold
Intake Manifold Tightening Sequence:
Camshaft Bearing Caps
Left Camshaft Bearing Cap Tightening Sequence:
Right Camshaft Bearing Cap Tightening Sequence:
Main Bearings/Crankshaft
Lower crankcase bolts sequence
Upper-to-lower crankcase perimeter bolts
Note: Refer to Engine, Service and Repair, Engine Overhaul, Crankshaft and Bearings Installation for sequence and step details.
