Global Positioning System: Service and Repair

COAXIAL CABLE REPLACEMENT - CELLULAR TELEPHONE

REMOVAL PROCEDURE
1. Remove the instrument panel (IP) trim pad.

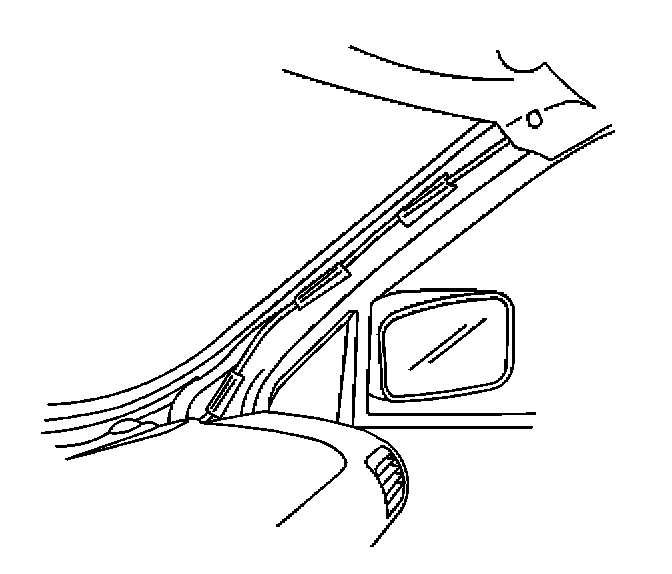

2. Remove the garnish molding from the right side windshield pillar.

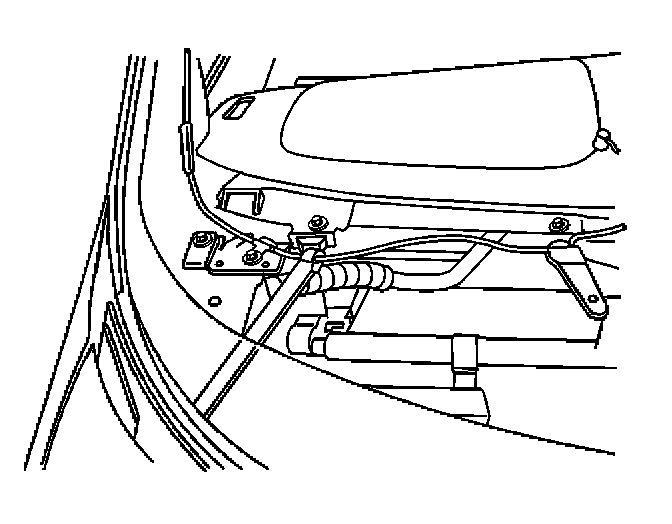

3. Unscrew the coaxial cable from the cellular antenna on the windshield.

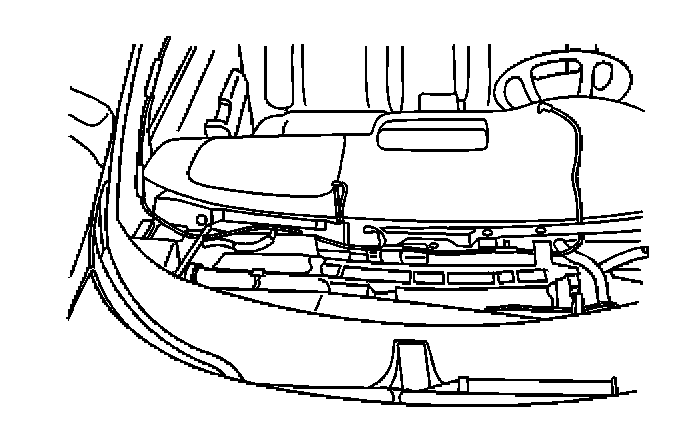

4. Unscrew the coaxial cable from the VIU/VCU module.

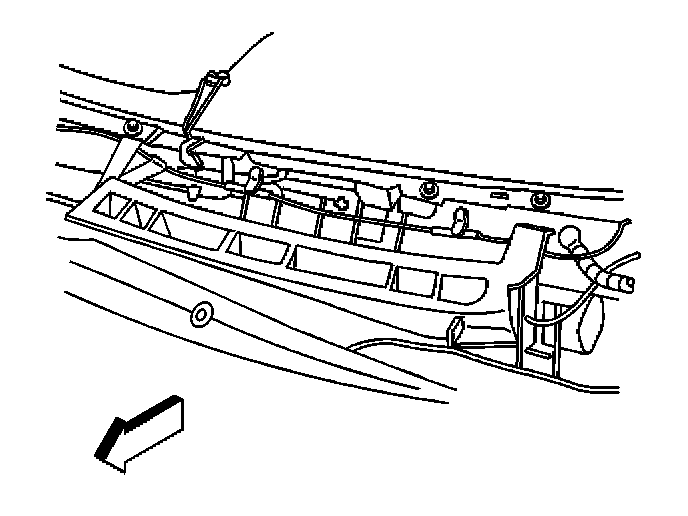

5. Remove the bolt from the ground tab on the right side on the IP.




6. Remove the cable clips which secure the cable to the IP.




7. Remove the coaxial cable.

INSTALLATION PROCEDURE




1. Install the coaxial cable.




2. Install the cable clips to the IP frame.

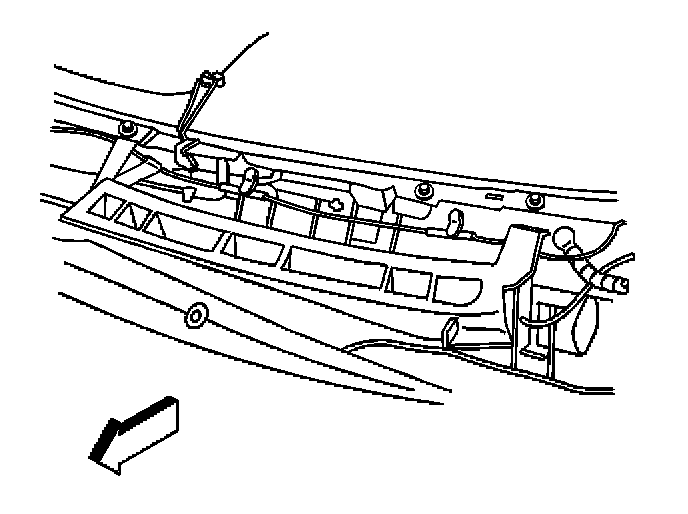

3. Install the bolt to the ground tab on the right side on the IP.

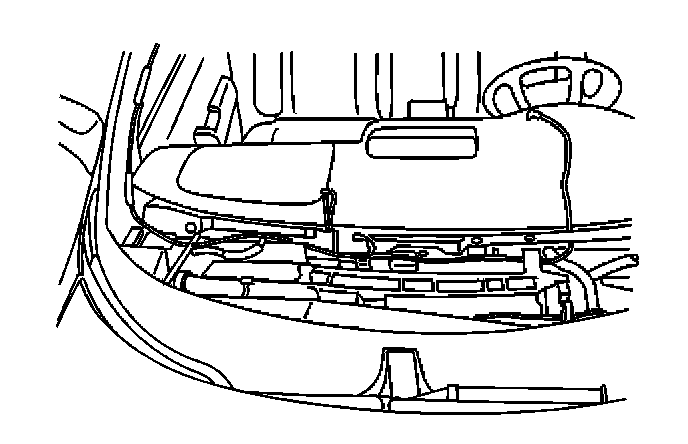

4. Install and tighten the coaxial cable to the VIU/VCU module.
5. Retape the cable to the A-pillar.
6. Install and tighten the coaxial cable to the cellular antenna on the windshield.
7. Install the garnish molding to the right side windshield pillar.
8. Install the IP trim pad.
