Parking Brake Warning Switch: Service and Repair

Park Brake Warning Lamp Switch Replacement






Removal Procedure

1. Remove the left-side instrument panel insulator.
2. Remove the left-side carpet retainer.

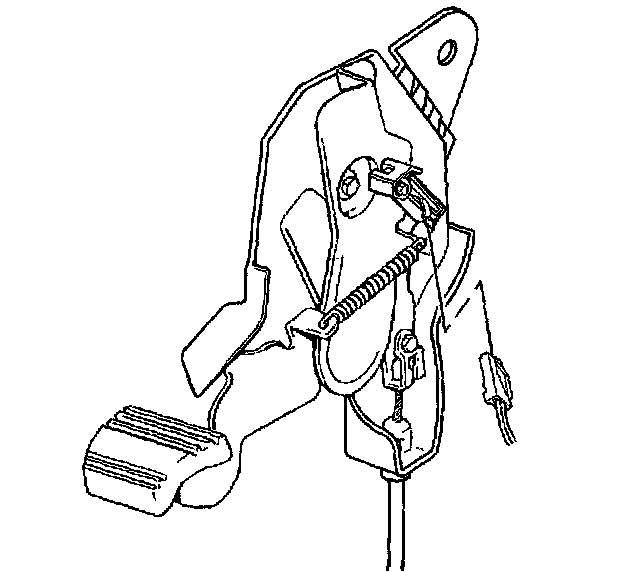

3. Remove the park brake indicator switch electrical connector.
4. Remove the park brake indicator switch screw.
5. Remove the parking brake indicator switch.

Installation Procedure






1. Install the park brake indicator switch.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the park brake indicator switch screw.
^ Tighten the screw to 3 Nm (27 lb in).

3. Install the park brake indicator switch electrical connector.
4. Install the left-side carpet retainer.
5. Install the left-side instrument panel insulator.
