Ambient Temperature Sensor / Switch HVAC

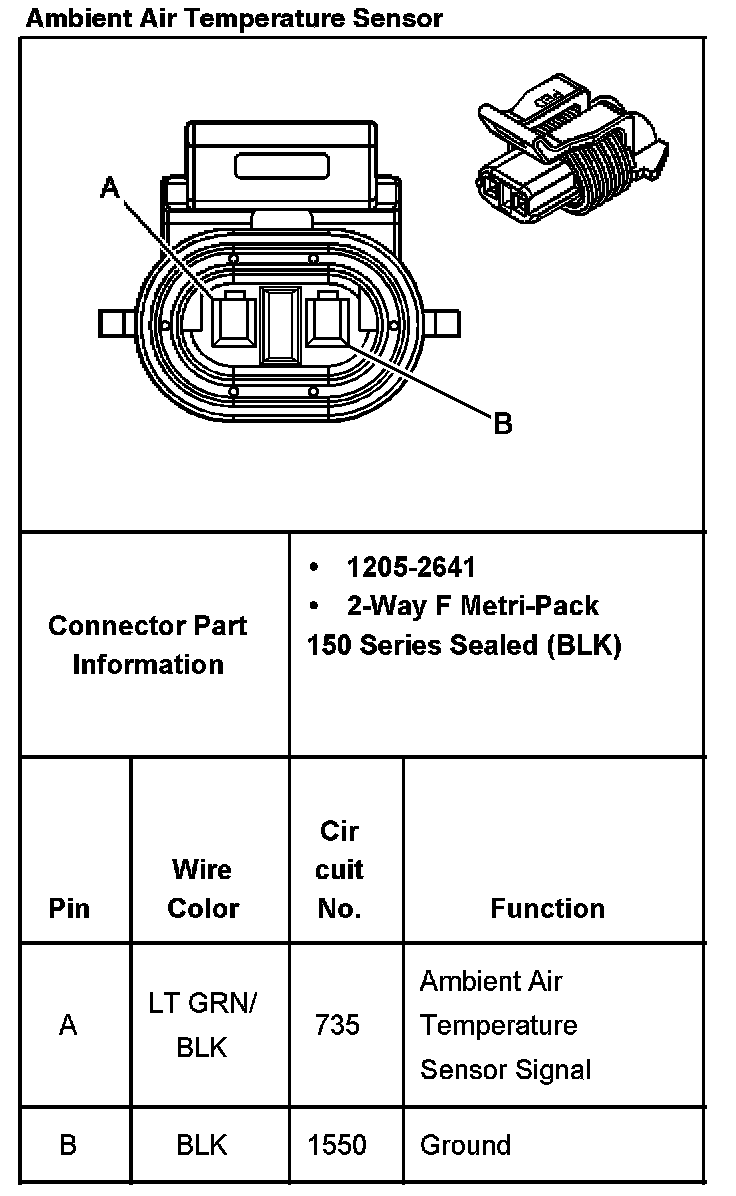

Ambient Air Temperature Sensor:

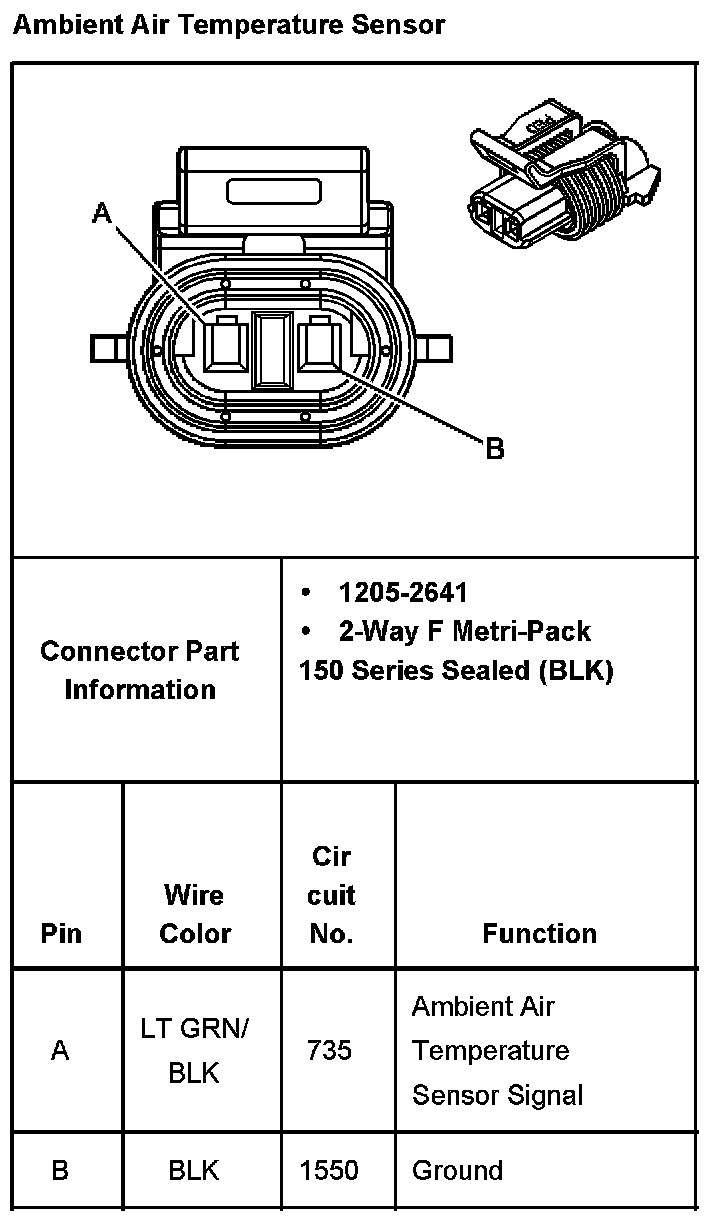

Ambient Air Temperature Sensor:
