Home
>>
Oldsmobile
>>
2003
>>
Silhouette V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Daytime Running Lamp Control Unit
>>
Daytime Running Lamps (DRL) Control Module C1
Daytime Running Lamps (DRL) Control Module C1

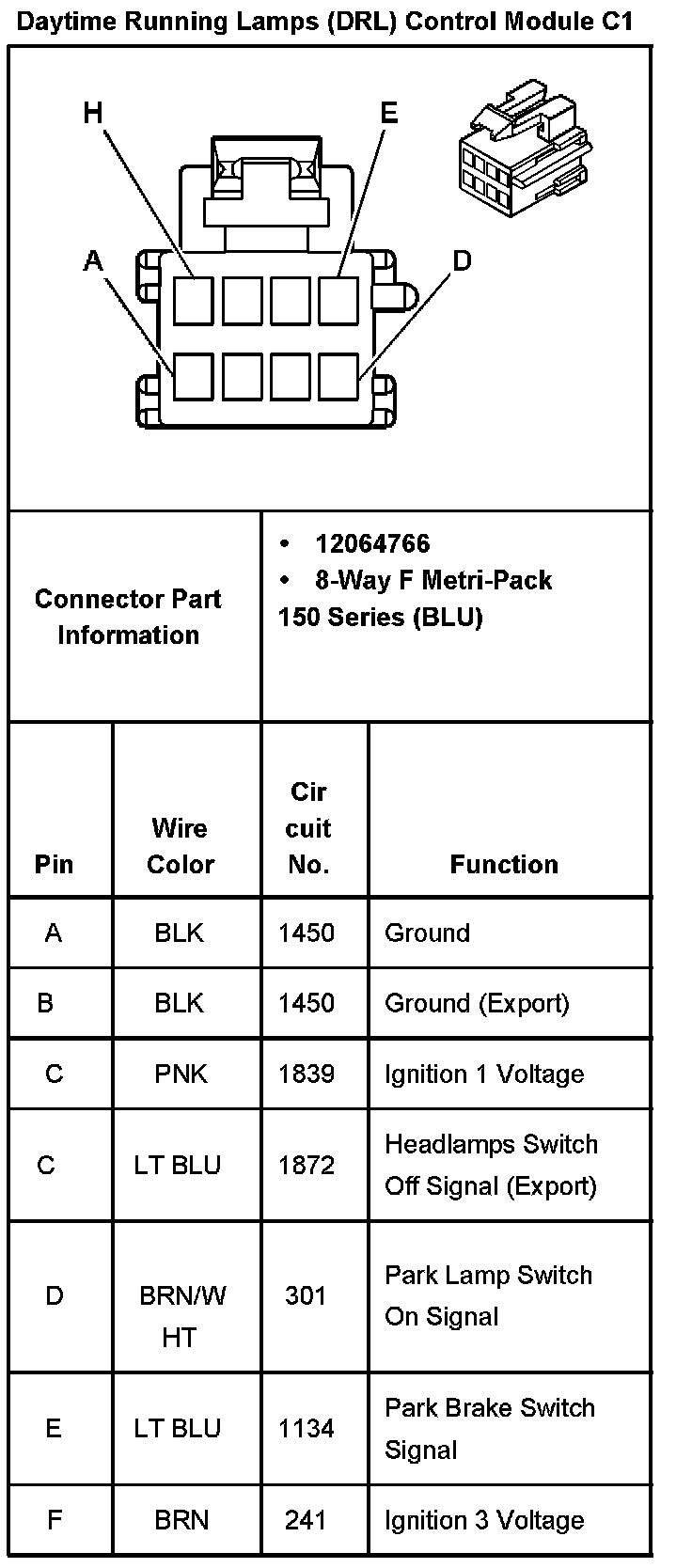

Daytime Running Lamps (DRL) Control Module C1 Part 1:

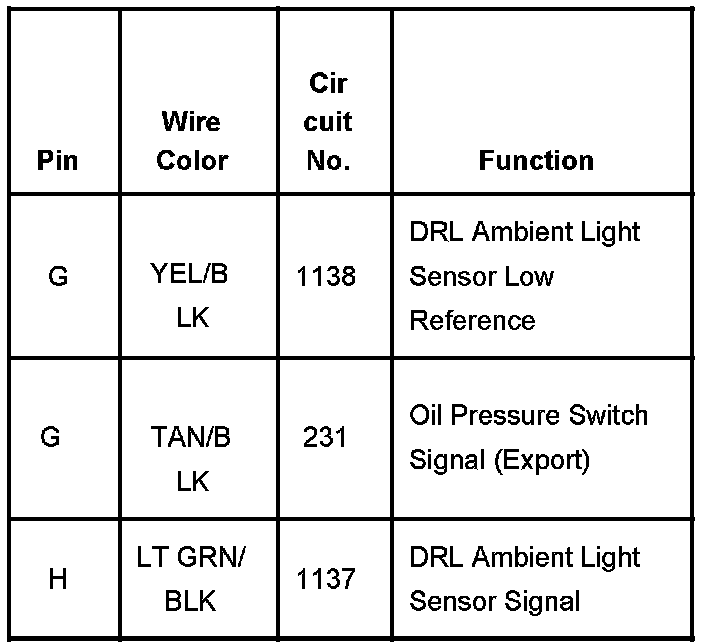

Daytime Running Lamps (DRL) Control Module C1 Part 2:
