Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
2003
>>
Silhouette V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Body Control Systems
Body Control Systems

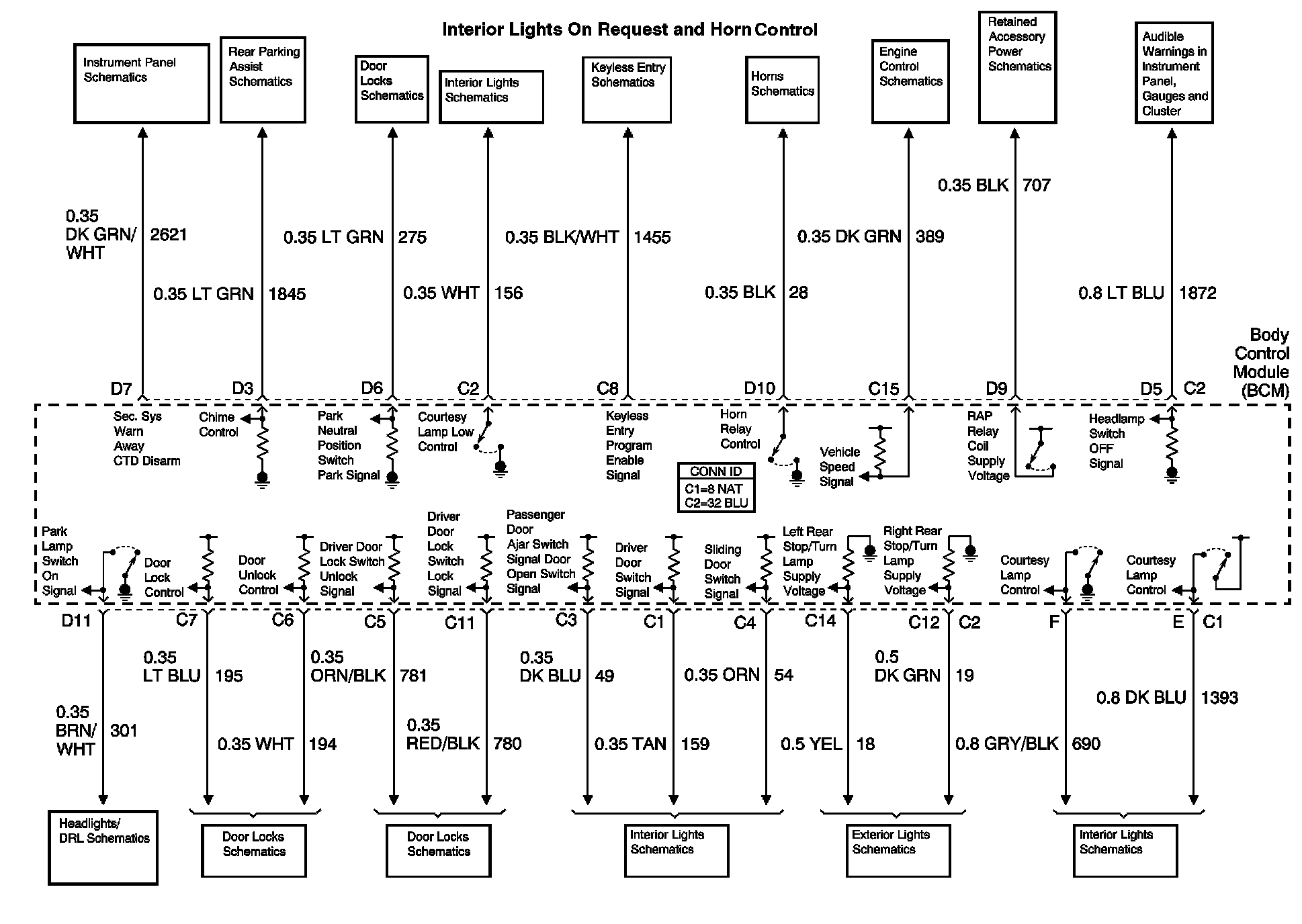

Body Control System Diagram 1:

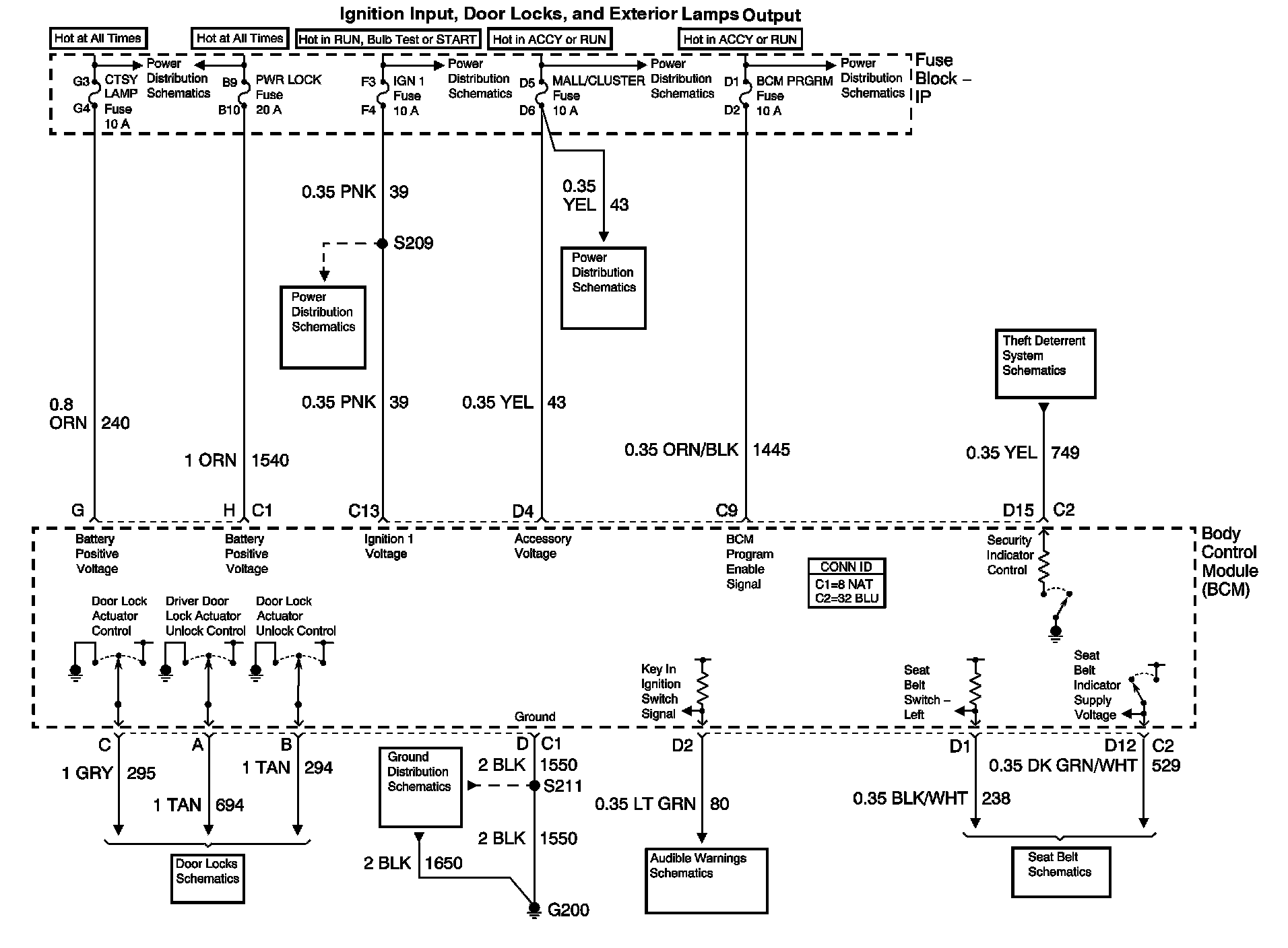

Body Control System Diagram 2:
