Zone 6

1. Remove the key from the ignition switch.

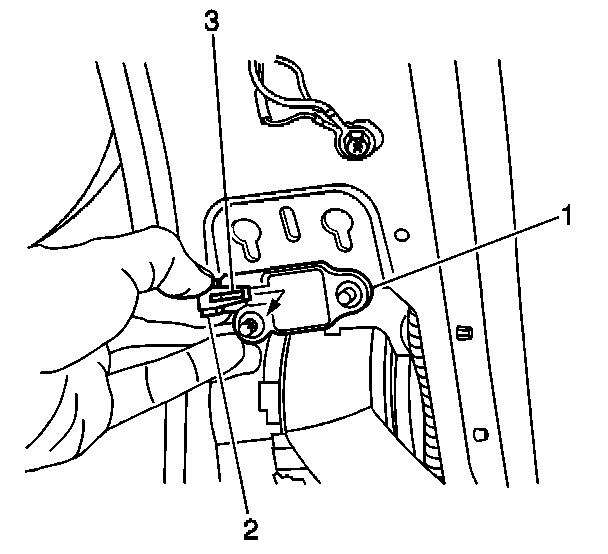

2. Connect the SIS-RF connector (2) to the SIS-RF (1).
3. Install the CPA (3) to the SIS-RF connector (2).
4. Install the side impact sensor (SIS)-RF.
5. Install the SDM Fuse.
6. Install the fuse block access cover.
7. Staying well away from all inflator modules and pretensioners, turn ON the ignition.
7.1. The AIR BAG indicator will flash 7 times.
7.2. The AIR BAG indicator will then turn OFF.
8. Perform Diagnostic System Check - Restraint Systems if the AIR BAG indicator does not operate as described.
