Brake Switch (Cruise Control): Adjustments

CRUISE RELEASE SWITCH ADJUSTMENT

NOTE: Proper stoplamp switch adjustment is essential. Improper stoplamp switch adjustment may cause brake drag, heat buildup and excessive brake lining wear.

1. Remove the left side instrument panel insulator.

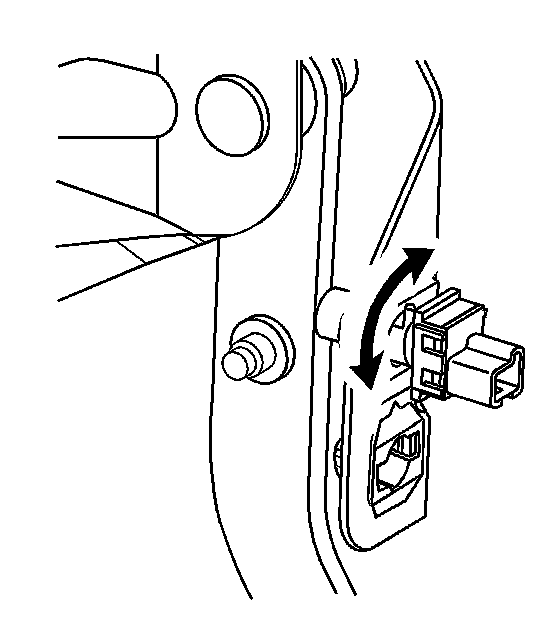

2. Rotate the switch counter-clockwise until the travel stop is reached (approximately 60 degrees).

3. Insert the switch into the retainer until the switch plunger is fully depressed into the switch barrel.

IMPORTANT: Do NOT move or push the brake pedal.

4. Rotate the switch until the travel stop is reached (approximately 60 degrees). The electrical connector index notch should be at the 12 o'clock position.
5. Ensure that the cruise control system operates properly.
6. Install the left side instrument panel insulator.
