Shift Lever

Shift Lever Replacement

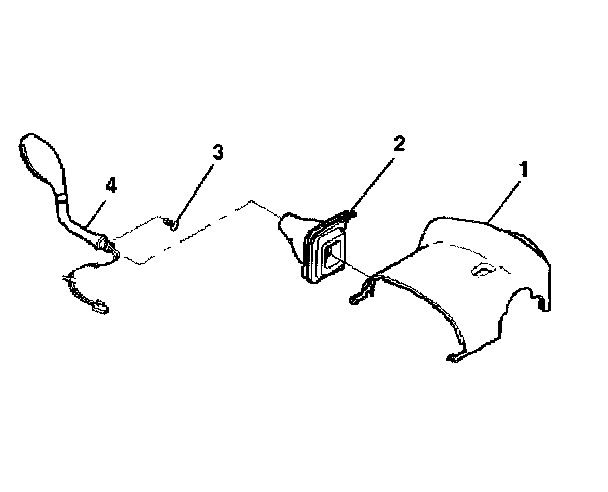

Removal Procedure
1. Remove the steering column trim covers.
2. Rollback the shift lever boot.





3. Remove the shift lever screw (3).
4. Remove the shift lever assembly (4).
5. Remove the shift lever seal (2) from the shift lever assembly (4).

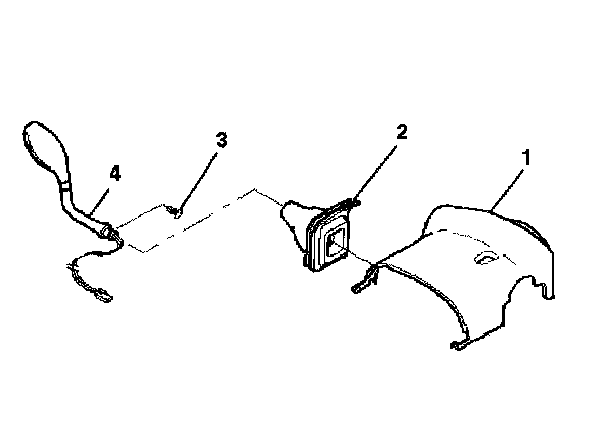

Installation Procedure





1. Install the shift lever seal (2) onto the shift lever assembly (4).

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the shift lever assembly (4) and secure it with the shift lever screw (3).
Tighten the screw to 20 Nm (15 ft. lbs.).

Important: The shift lever boot must be seated inside the trim covers.

3. Slide the shift lever boot into the trim covers.
4. Install the steering column trim covers.
