47. Vehicle Speed Sensor (VSS) Reluctor Wheel Assemble (FWD Only)

Vehicle Speed Sensor (VSS) Reluctor Wheel Assemble (FWD Only)





1. Warm the vehicle speed sensor reluctor wheel before installation

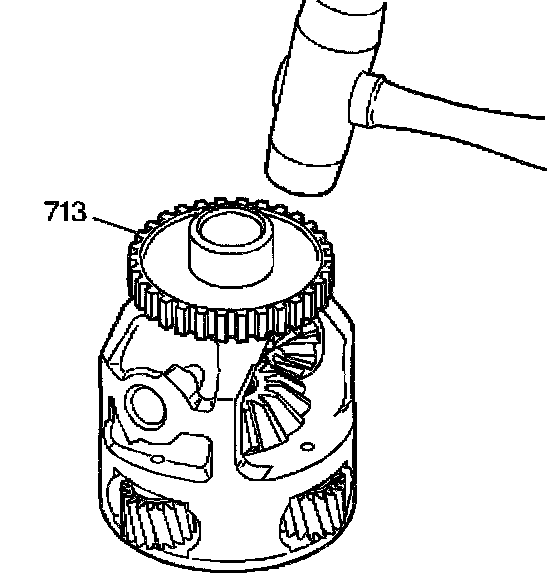

2. Use a plastic mallet in order to install the vehicle speed sensor reluctor wheel (713) onto the differential carrier housing. Tap evenly around the reluctor wheel with the mallet until fully seated.
