Air Temperature Sensor ( Ambient / Intake ): Service and Repair

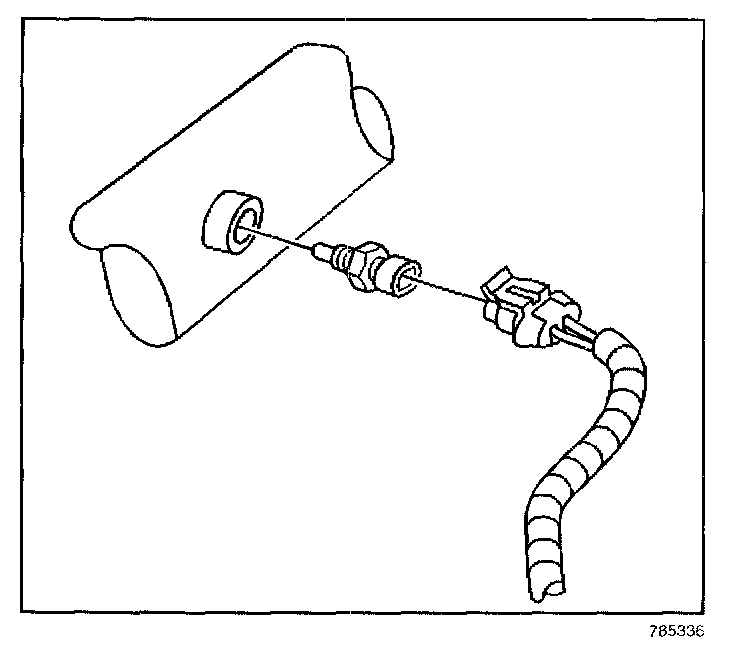

INTAKE AIR TEMPERATURE (IAT) SENSOR REPLACEMENTREMOVAL PROCEDURE 1.
Turn OFF the ignition.
2.
Disconnect the intake air temperature (IAT) harness connector.
3.
Remove the IAT sensor using a twisting and pulling movement.
INSTALLATION PROCEDURE 1.
Install the IAT sensor.
2.
Connect the IAT sensor harness connector.
