Silhouette AWD V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Memory Positioning Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

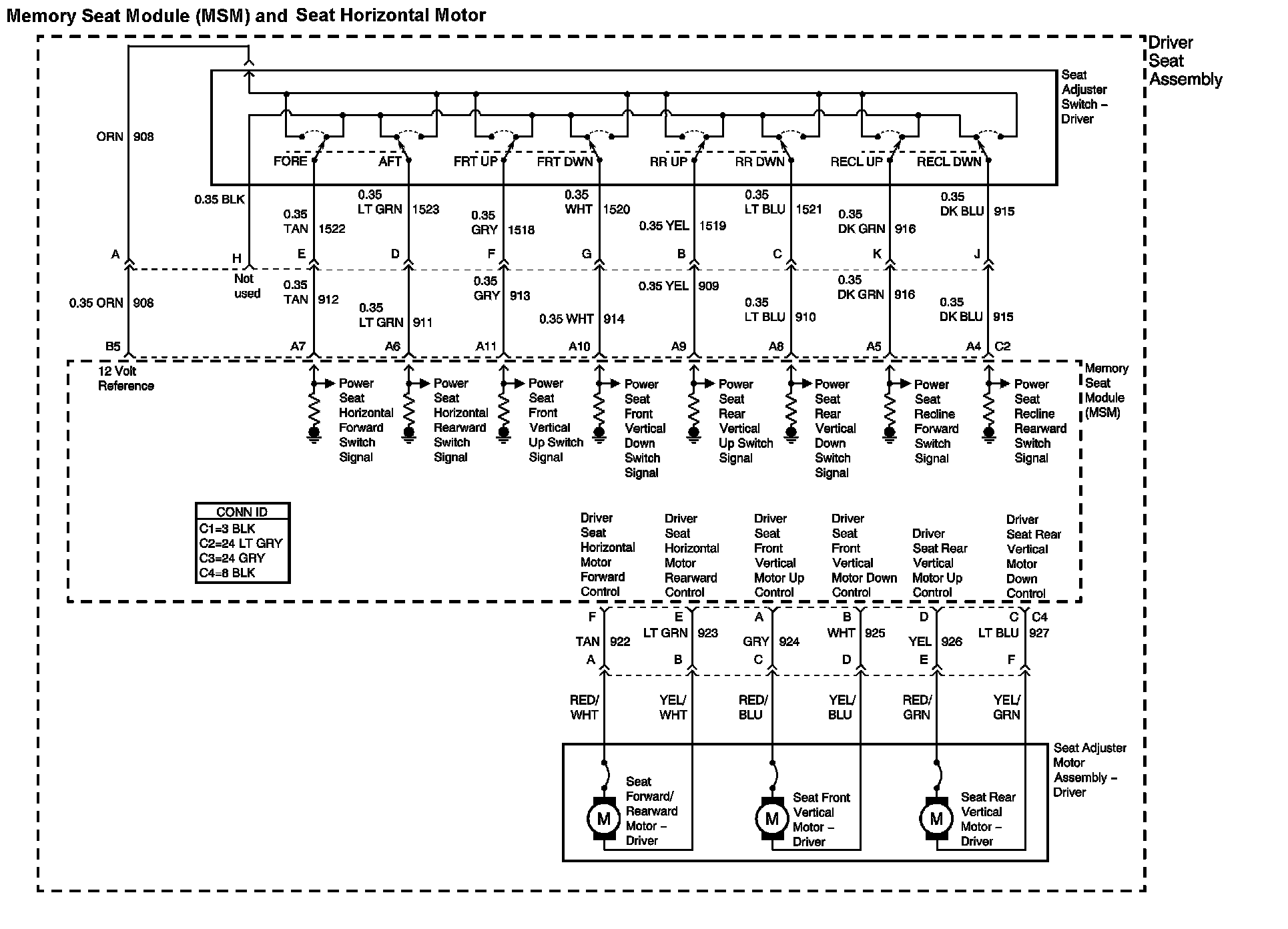

Memory Seats Diagram 1:

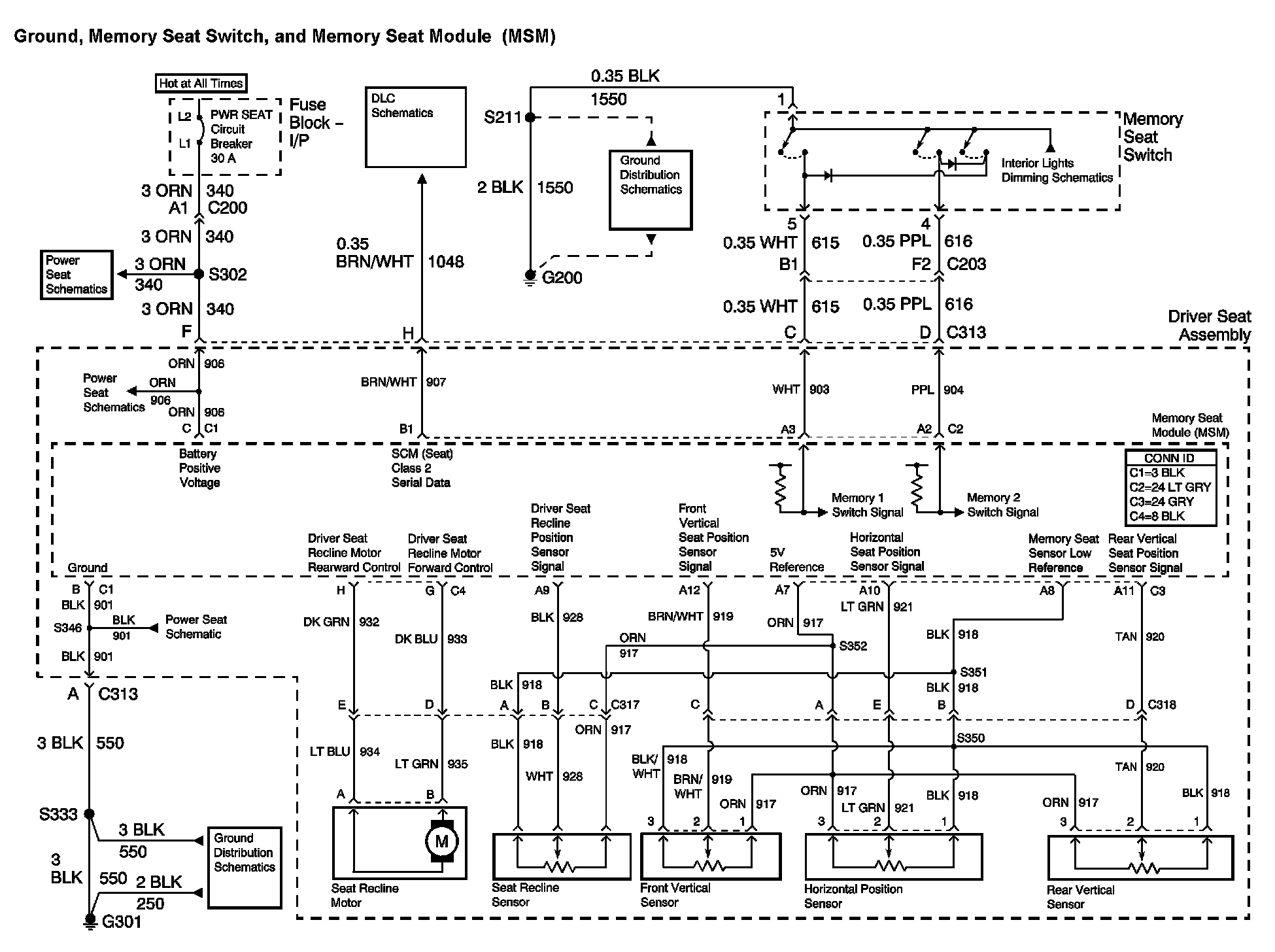

Memory Seats Diagram 2:
