Foot Rest Replacement - Sit-N-Lift

Foot Rest Replacement - Sit-N-Lift

Removal Procedure

1. Extend the seat from the vehicle.
2. Unlock the foot rest and extend the foot rest from the seat base.




3. Remove the foot rest lock handle.

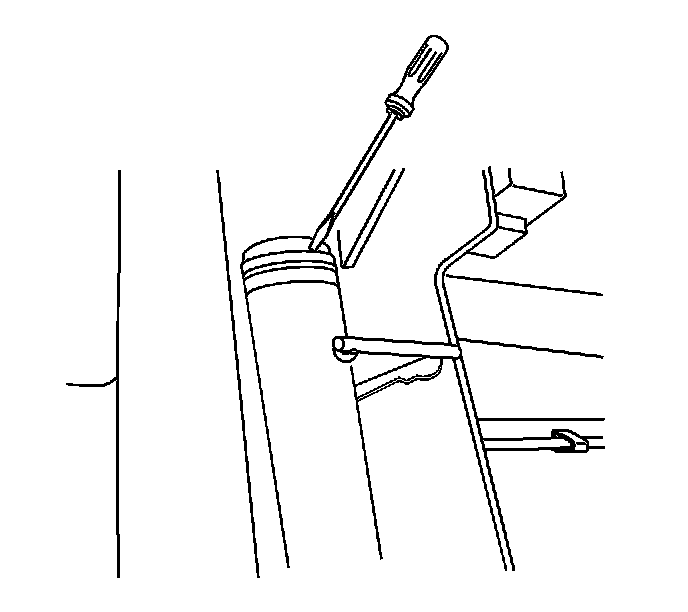

4. Use a flat-bladed tool to remove the bolt cover from the foot rest tube.

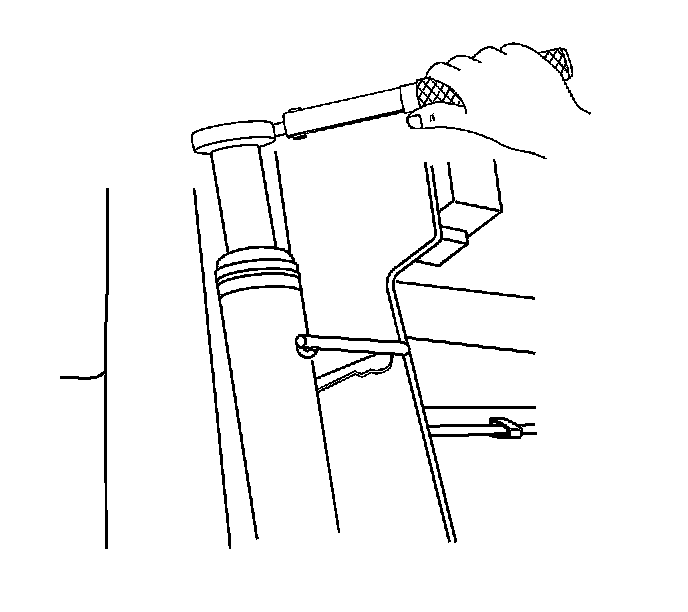

5. Remove the bolt from the foot rest tube.

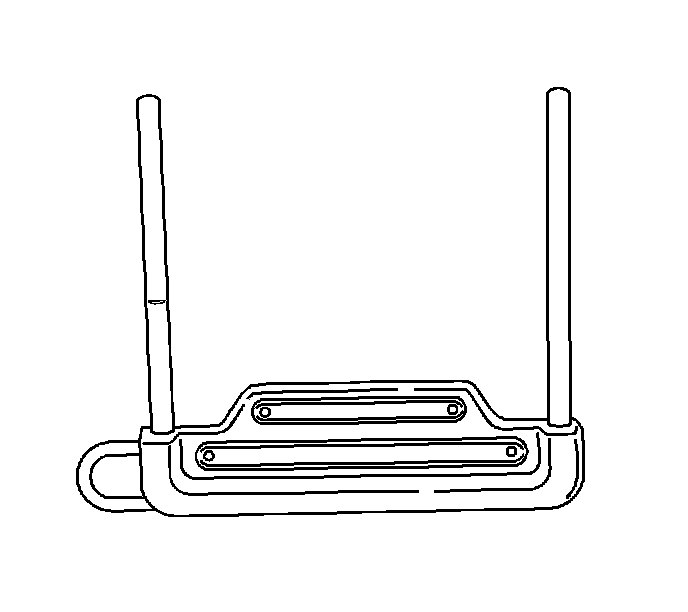

6. Remove the foot rest from the seat base.



Installation Procedure

1. Install the foot rest to the seat base.





Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the bolt to the foot rest tube.

Tighten the bolt to 33 N.m (25 lb ft).





3. Install the foot rest tube covers and snap into place.




4. Install the foot rest lock handle.
5. Return the foot rest to the seat base.
6. Return the seat to the vehicle.
7. Test the seat for proper operation.
