78. Water Pump Installation

Water Pump Installation





1. Install the water pump gasket.
2. Install the water pump.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the water pump bolts.
Tighten the water pump bolts to 11 Nm (98 inch lbs.).

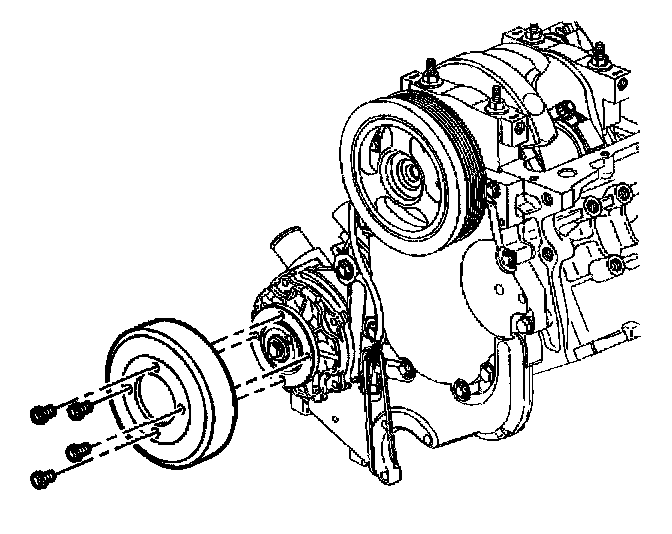

4. Install the water pump pulley.
5. Install the water pump pulley bolts.
Tighten the water pump pulley bolts to 25 Nm (18 ft. lbs.).
