Wheel Bearing/Hub Replacement - Rear (Disc and AWD)

Wheel Bearing/Hub Replacement - Rear (Disc and AWD)

Removal Procedure
1. Raise and support the vehicle.
2. Remove the tire and wheel.
3. Remove the knuckle.

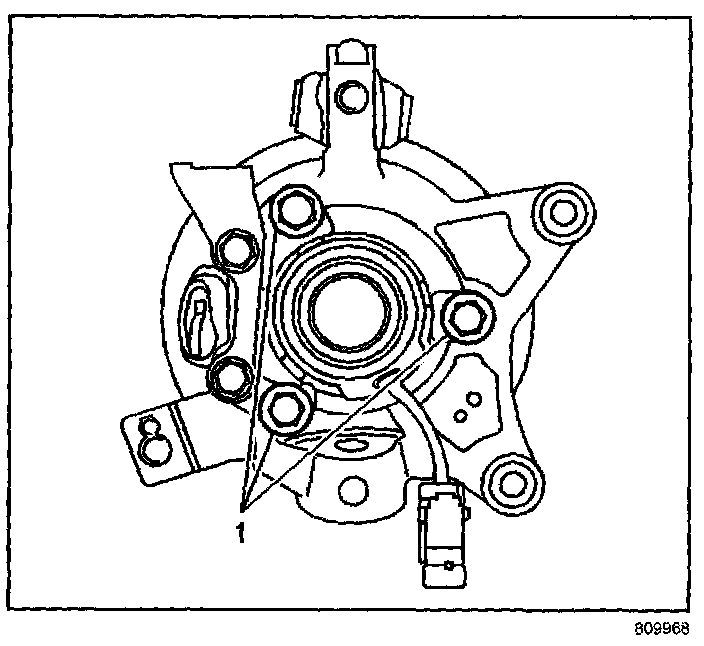

4. Remove the wheel bearing/hub assembly knuckle bolts (1).

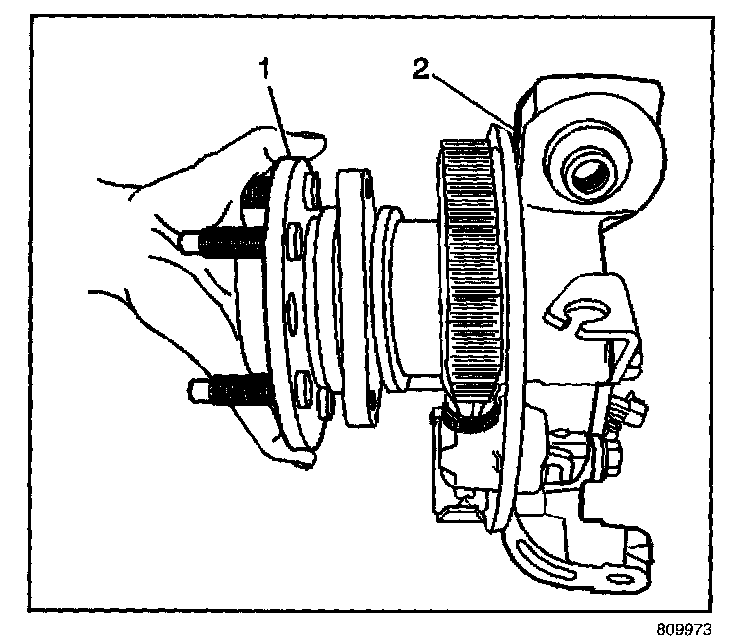

5. Remove the wheel bearing/hub assembly (1) from the knuckle (2).

Installation Procedure

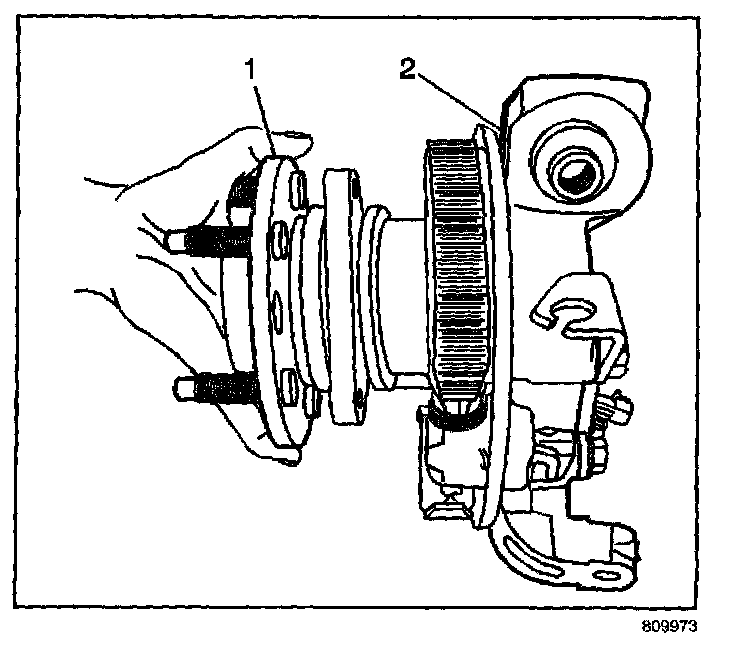

1. Install the wheel bearing/hub assembly (1) on to the knuckle (2).

Notice: Refer to Fastener Notice in Service Precautions.

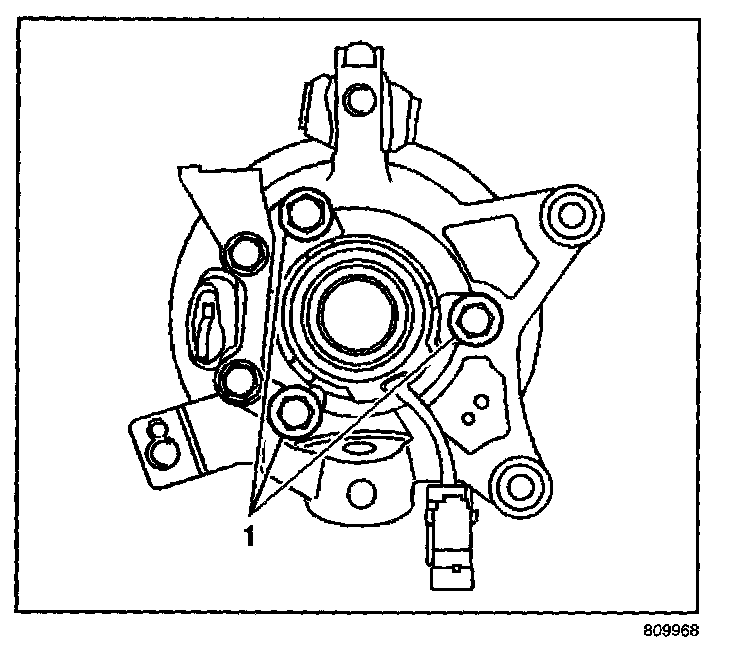

2. Install the bolts (1) into the wheel bearing/hub assembly.
^ Tighten the wheel bearing/hub bolts to 130 Nm (96 lb ft).
3. Install the tire and wheel.
4. Lower the vehicle.
