Wheel Bearing/Hub Replacement - Rear (Front Wheel Drive/Drum)

Wheel Bearing/Hub Replacement - Rear (Front Wheel Drive/Drum)

Removal Procedure
1. Raise and support the vehicle.
2. Remove the tire and wheel.
3. Remove the brake drum.






4. Remove and DISCARD the wheel bearing/hub bolts.
5. Remove the wheel bearing/hub.

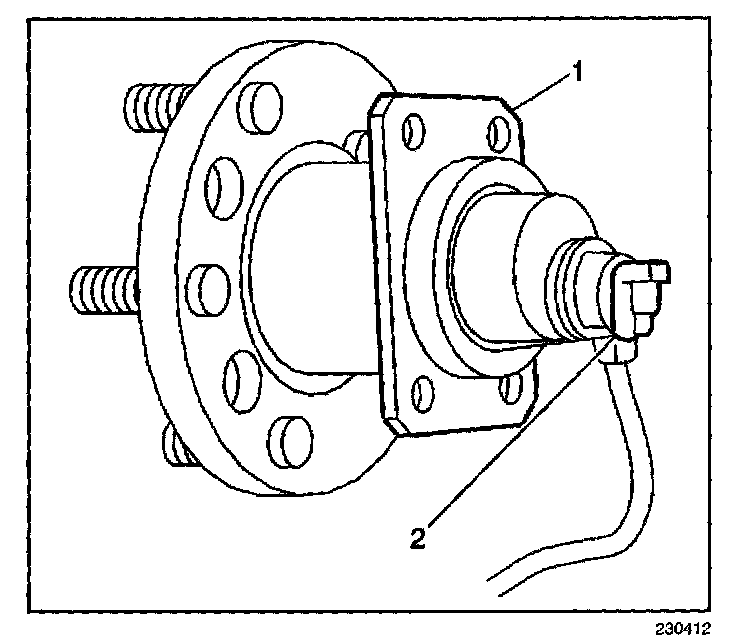

6. Disconnect the wheel speed sensor electrical connector (2).

Installation Procedure






1. Connect the wheel speed sensor electrical connector (2).






2. Install the wheel bearing/hub.

Caution: These fasteners MUST be replaced with new fasteners anytime they become loose or are removed. Failure to replace these fasteners after they become loose or are removed may cause loss of vehicle control and personal injury.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the NEW wheel bearing/hub bolts.
^ Tighten the NEW wheel bearing/hub bolts to 80 Nm (59 lb ft).
4. Install the brake drum.
5. Install the tire and wheel.
6. Lower the vehicle.
