Home >> Peugeot >> 1986 >> 505 L4-1971cc XN >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams

Electrical Diagrams

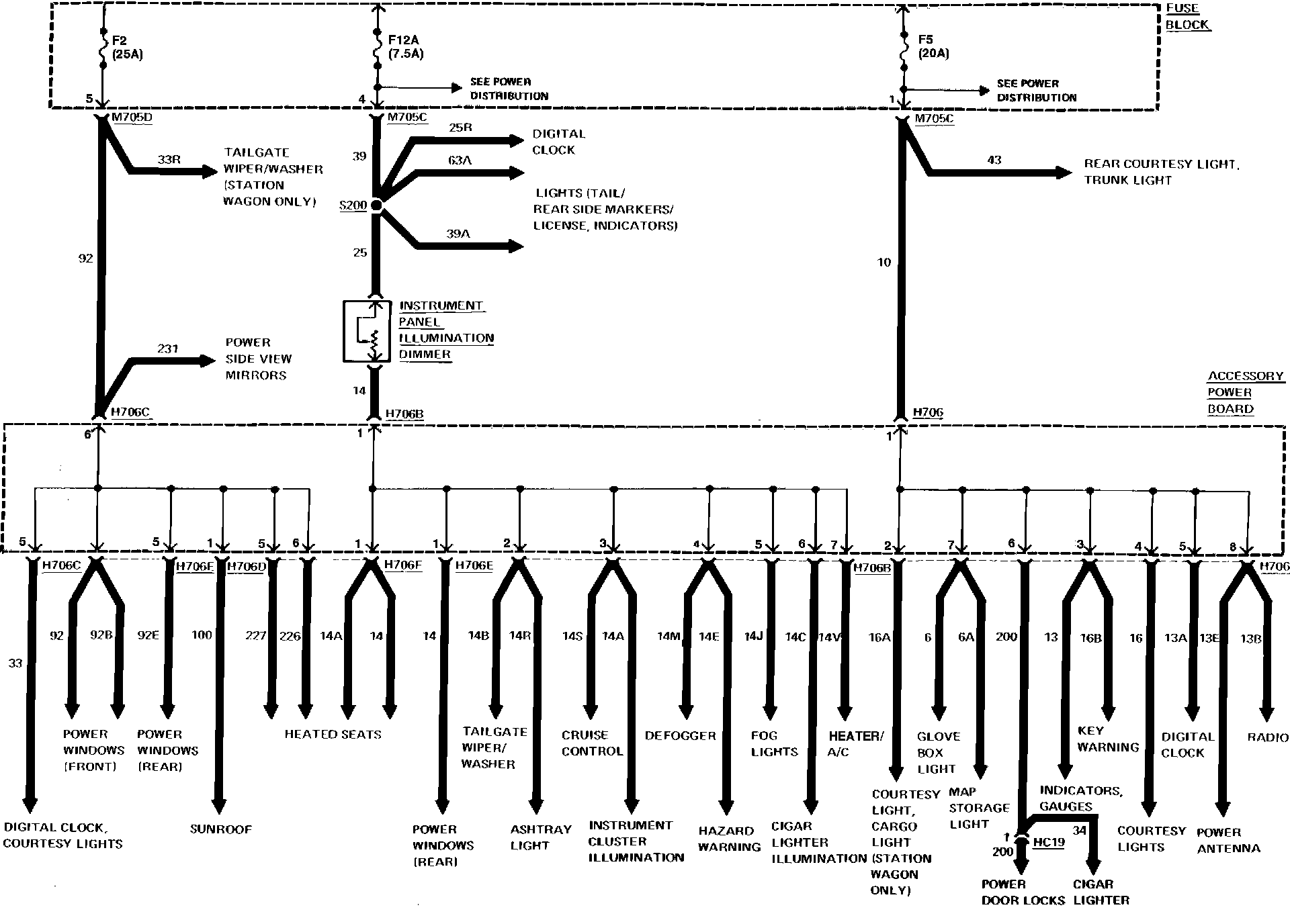

Fig. 32 Accessory Power Board Wiring Circuit.:
