EGR Maintenance Indicator Lamp

This indicator lamp lights every 12,500 miles to indicate the interval for EGR valve maintenance. After performing EGR maintenance, the lamp may be reset as follows:

1. Remove cover from reset access port.

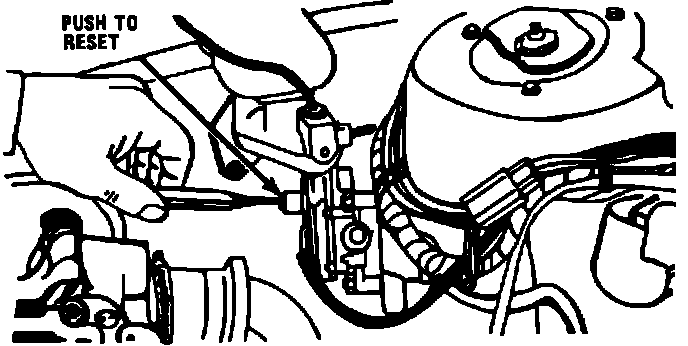

Fig. 1 Resetting Indicator Lamp Switch:

2. Push reset button with pin punch, Fig. 1.

3. Install cover.
