Peugeot
>>
1991
>>
405 L4-1905cc 1.9L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Locations
>>
Engine Compartment Components
Engine Compartment Components

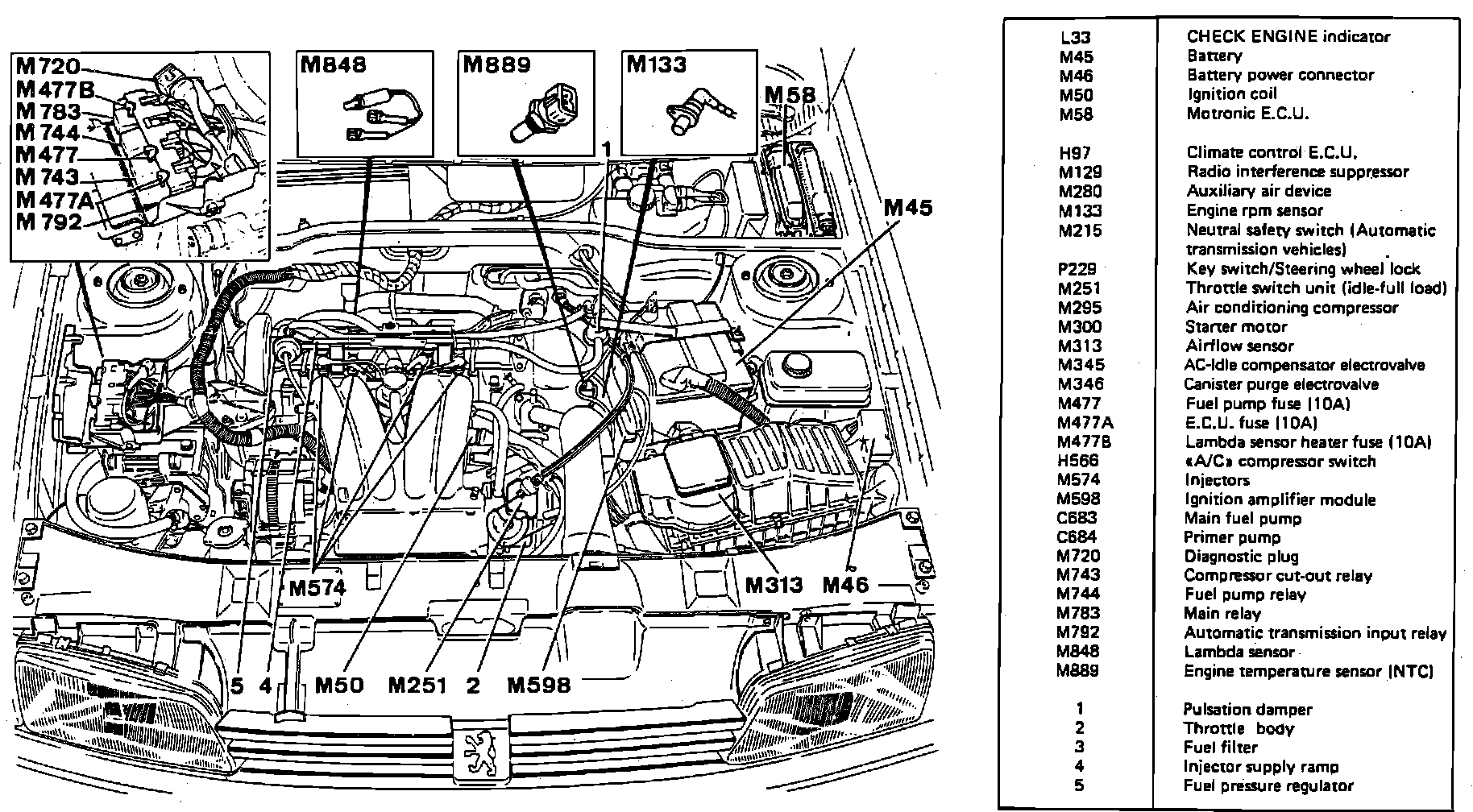

Fig. 2 Engine Compartment:
