System Specifications

Cylinder Head Tightening Specification

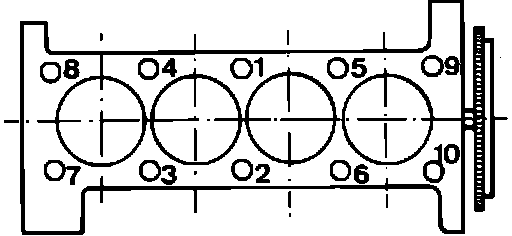

Fig. 9 Cylinder Head Bolt Sequence:

Tighten head bolts as follows:

a. Torque in sequence shown in Fig. 9, to 44 ft. lbs.

b. Completely loosen all bolts in same sequence.

c. Re-torque in sequence to 15 ft. lbs.

d. Torque each bolt an additional 300° in same sequence.
