Plymouth
>>
1983
>>
Arrow/D50 Import L4-2.3L DSL
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Glow Plug System
>>
Testing and Inspection
>>
Engine Does Not Start (Part 2 of 2)
Engine Does Not Start (Part 2 of 2)

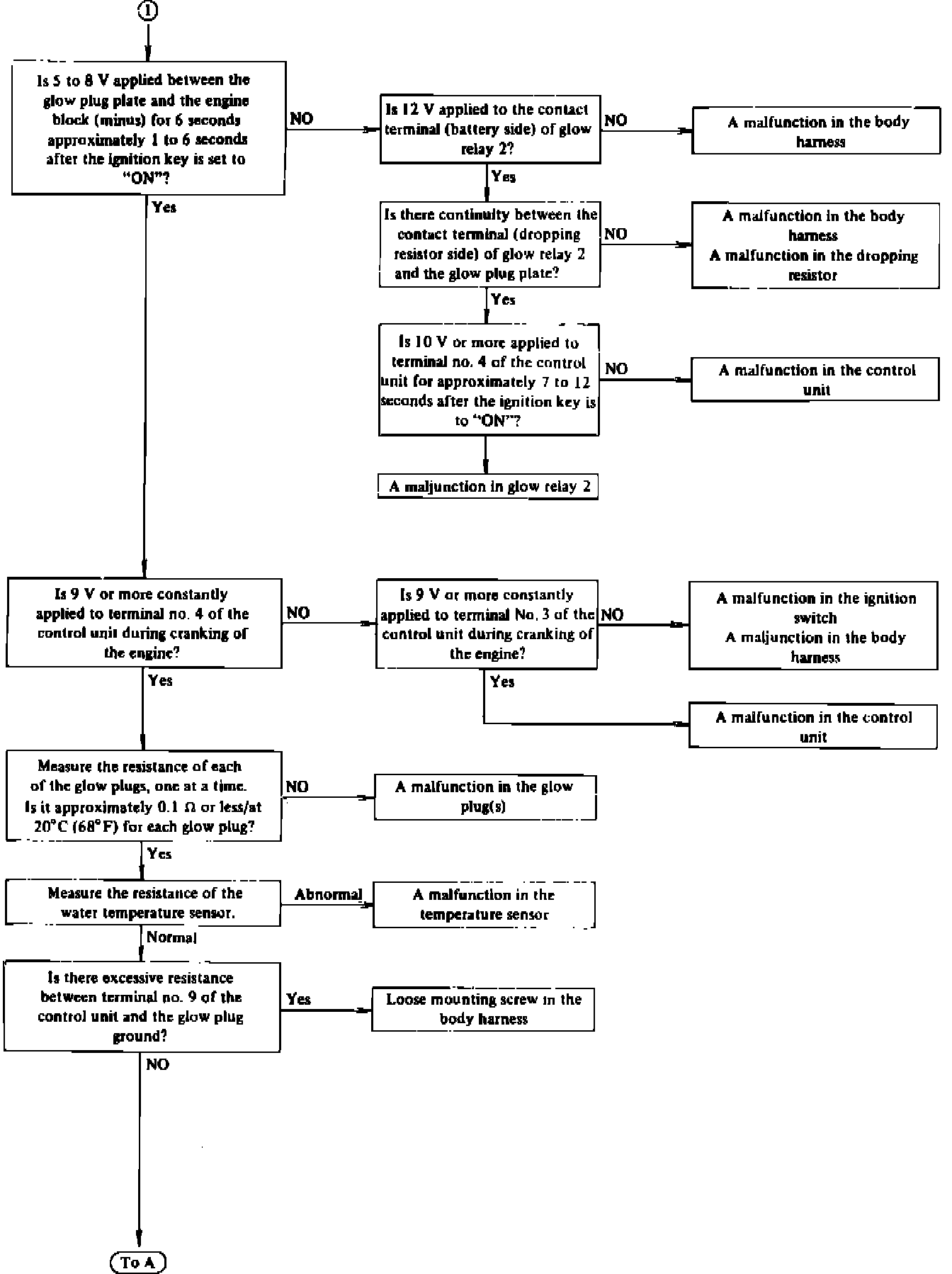

Fig. 31 Quick Glow System diagnosis chart (Part 2 of 4):
