M/T Shift Stopper Plate - Revised Design

83chrysler4

Models


1983 Dodge Power Ram 50 Four-Wheel Drive Equipped With KM 145 Five-Speed Manual Transmission


Subject


Revised Stopper Plate


Index


TRANSMISSION


Date


October 31, 1983

No..


21-07-83

P-4146-C

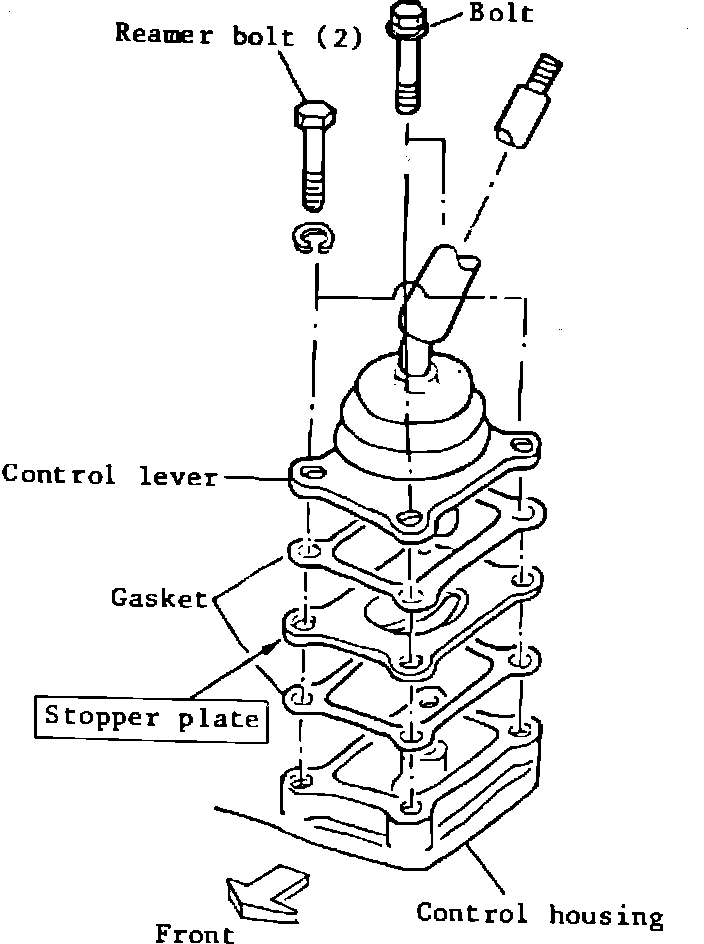

FIGURE 1:

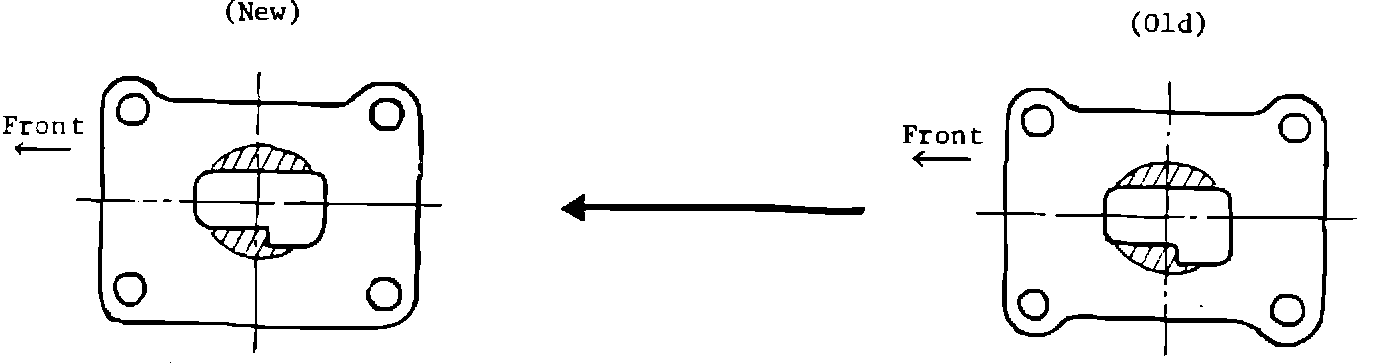

FIGURE 2:

The control lever-stopper plate for the KM 145 transmission (Figure 1) has been changed in shape as illustrated in Figure 2 for better identification. This will prevent wrong installation of the stopper plate. For your information, the part number of the stopper plate remains unchanged after this modification.
PRECAUTION FOR INSTALLATION

CARE MUST BE EXERCISED TO ENSURE THAT THE STOPPER PLATE IS NOT INSTALLED IN THE WRONG DIRECTION. IMPROPER INSTALLATION OF THE STOPPER PLATE WILL CAUSE POOR GEAR SHIFTING.

Effective Date: From October, 1982.


POLICY: Information only



NOTE: Each of the above illustrations shows the top view of the stopper plate. The hatched area shows the depression as shown below.
