Plymouth
>>
1987
>>
Horizon L4-135 2.2L SOHC
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
Harness Locations

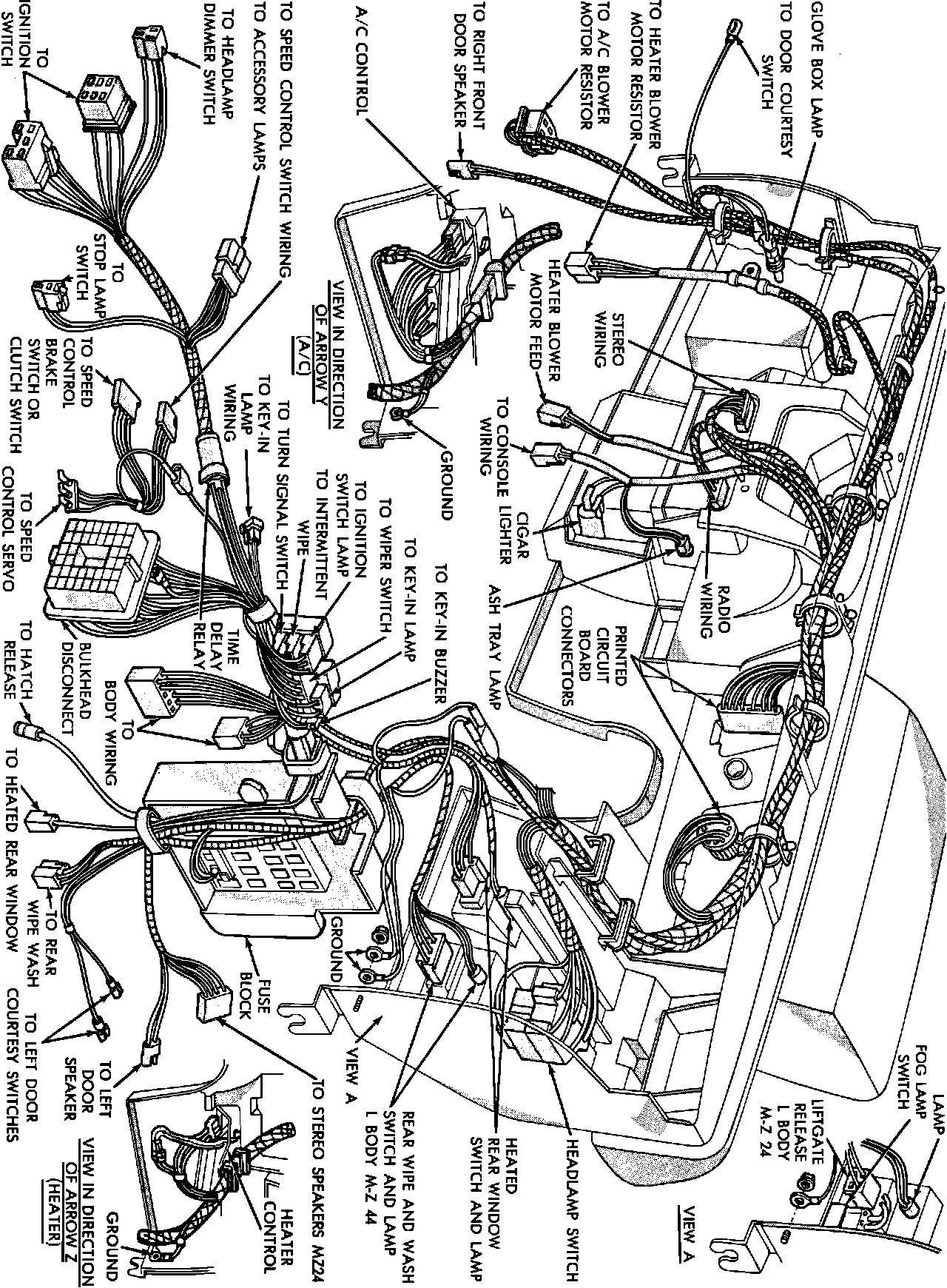

Instrument panel wiring harness.:
No Location Found
Applicable to: 1986-87 Charger, Horizon, Omni & Turismo
