Operation CHARM
: Car repair manuals for everyone.
Home
>>
Plymouth
>>
1987
>>
Voyager L4-135 2.2L SOHC
>>
Repair and Diagnosis
>>
Cruise Control
>>
Cruise Control Servo Cable
>>
Service and Repair
>>
Speed Control Cable Installation
Speed Control Cable Installation

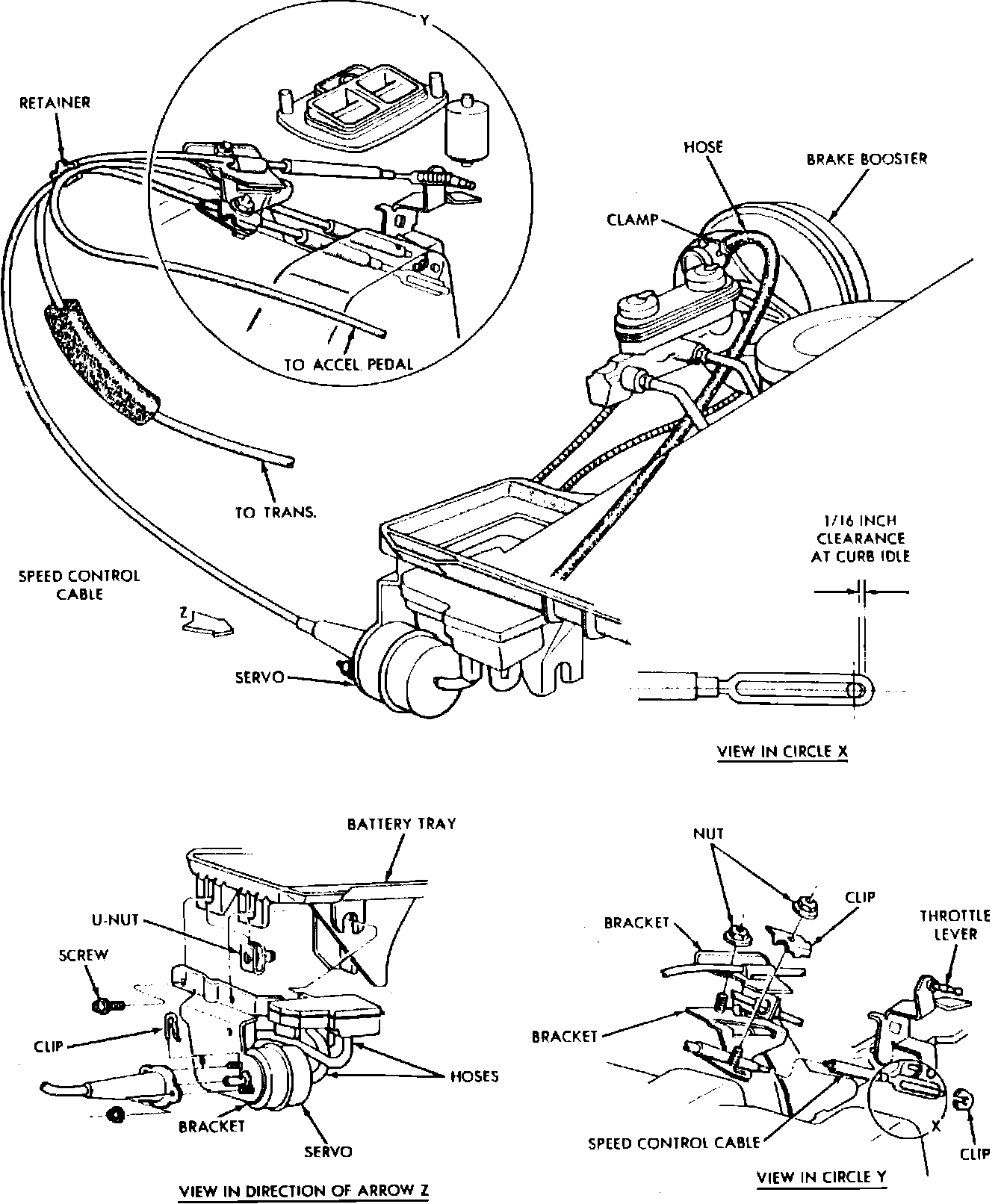

Fig. 20 Speed control cable installation. 1986-87 Mini-Vans/Wagons w/2.2L Engine:
