Oil Temperature Sensor/Switch, Engine

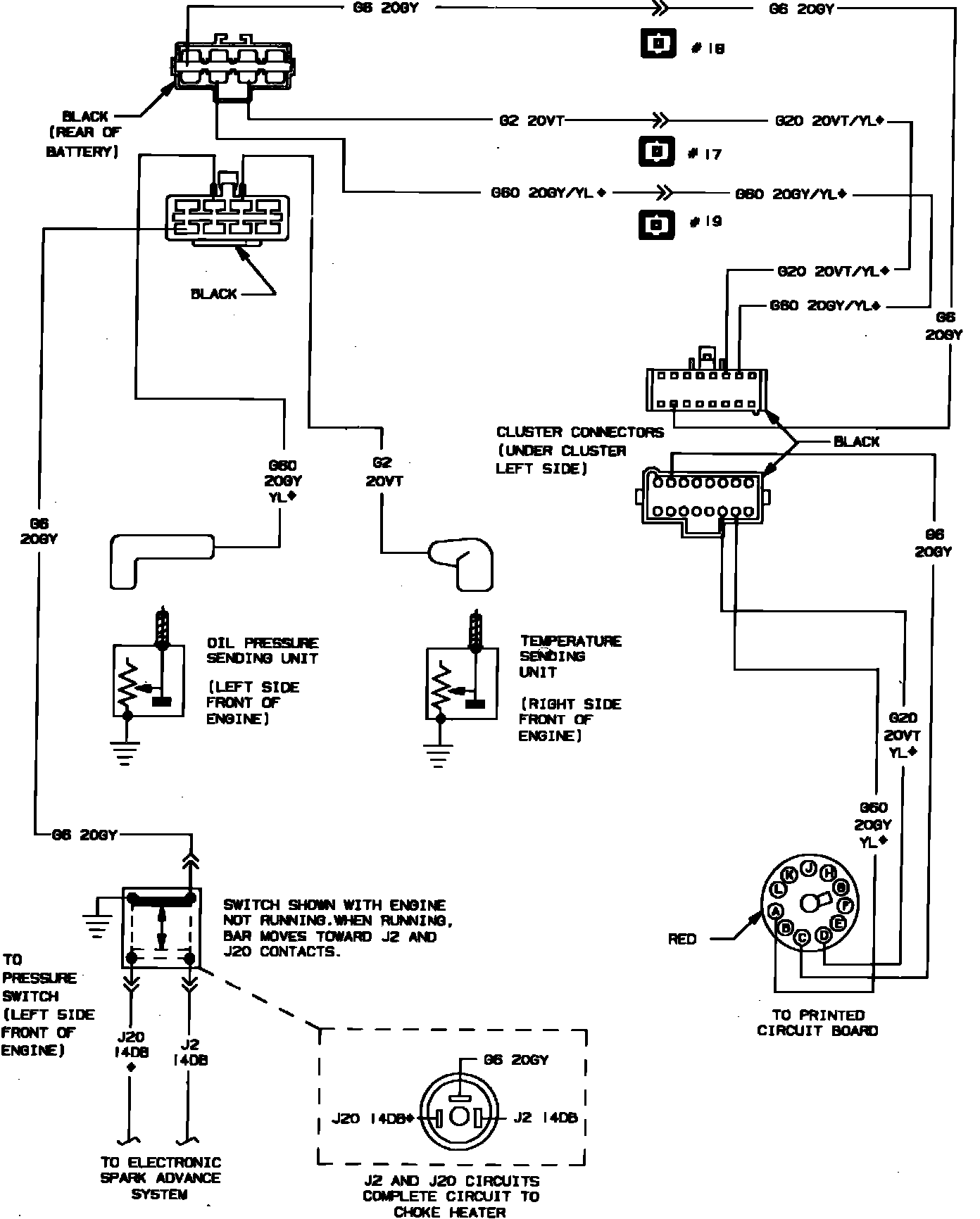

Fig. 35 Oil Pressure & Temperature System Wiring Circuit. 2.2L Engine:
