Ignition Cable: Diagrams

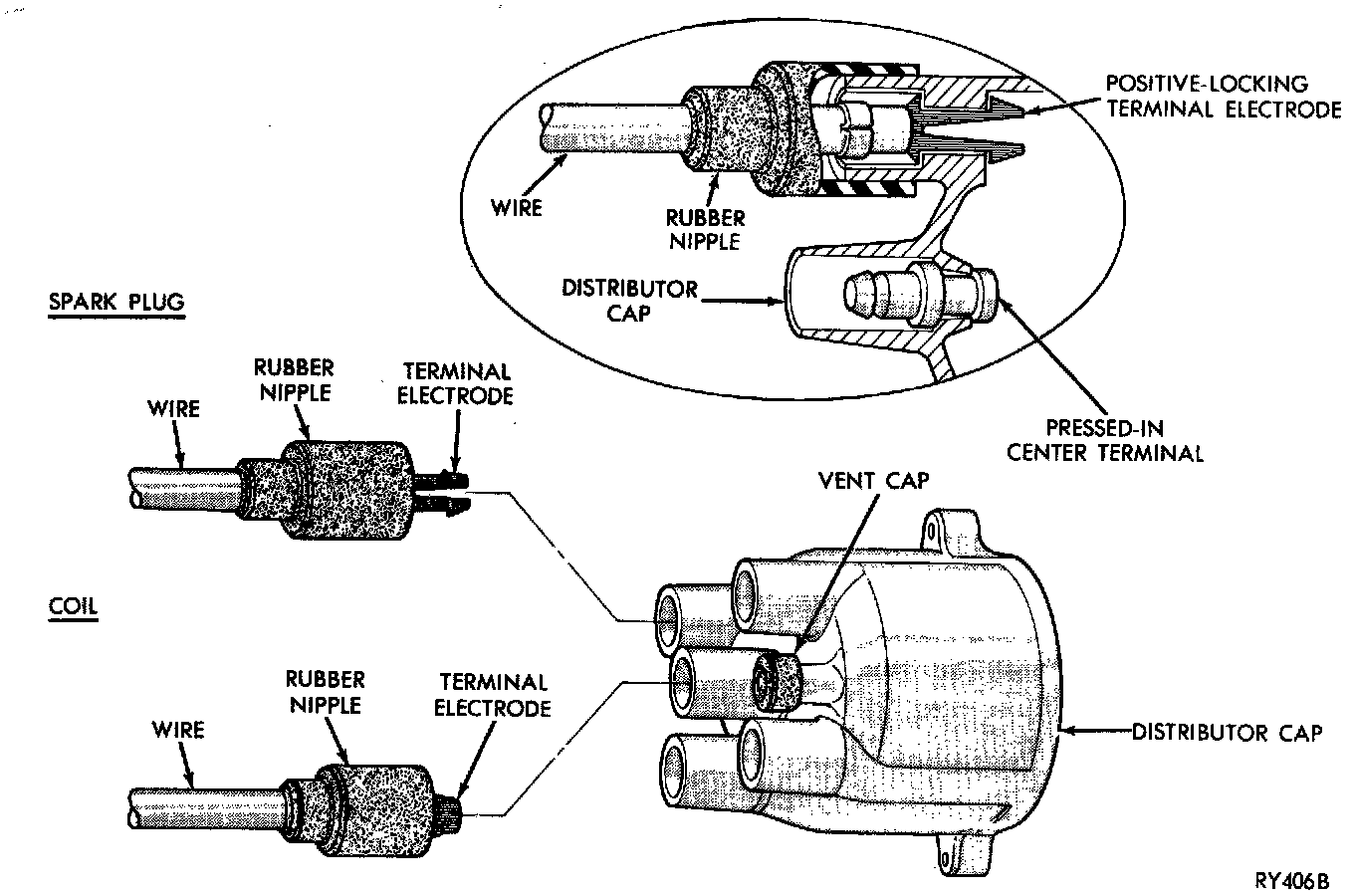

Positive Locking Terminals:




POSITIVE LOCKING TERMINALS

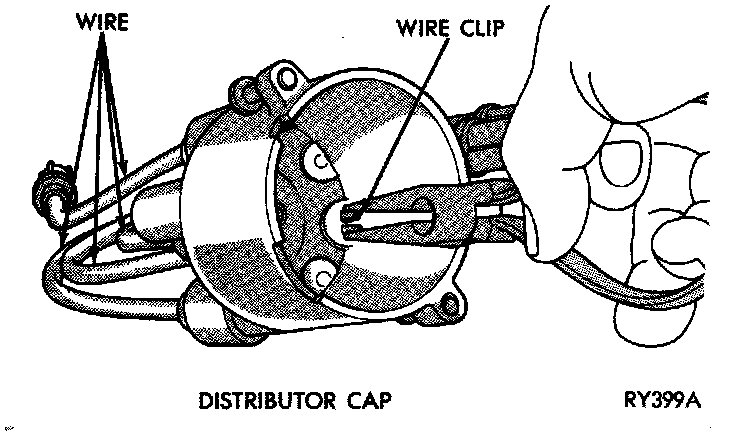

Removing Terminals From Distributor Cap:




REMOVING IGNITION CABLES FROM DISTRIBUTOR CAP

Firing Order 2.2L:




FIRING ORDER
