Home
>>
Plymouth
>>
1987
>>
Voyager L4-153 2.5L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Locations
>>
Connector Locations
>>
60-Way Connector
60-Way Connector

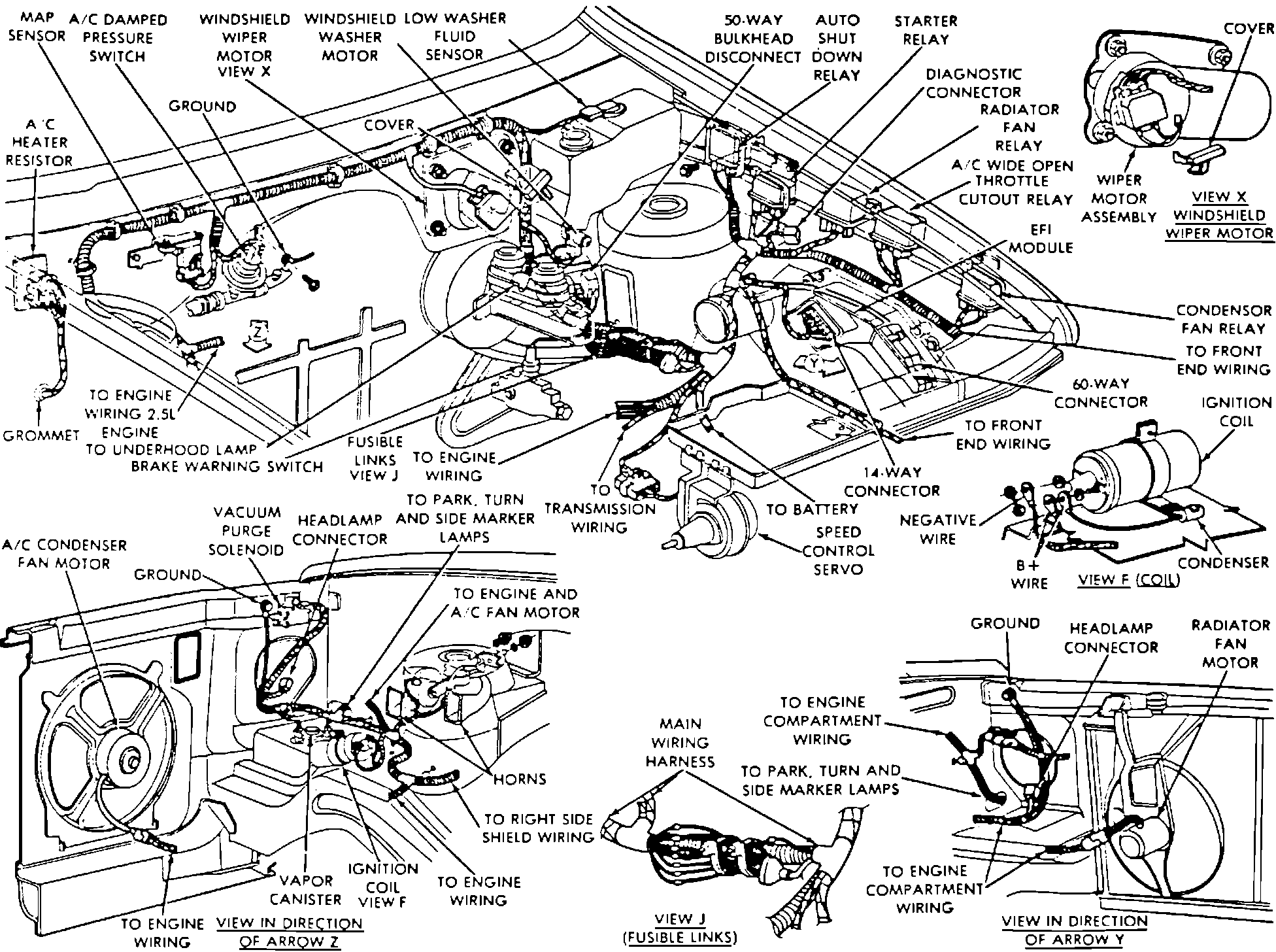

Front End & Engine Compartment Components:
